USB Ports Supported:Rear: 2 x USB4 (40Gbps) Type-C 8 x USB 10Gbps (6 Type-A + 2 Type-C)
Front: 2 x USB 20Gbps Type-C 4 x USB 5Gbps 4 x USB 2.0
Back Panel I/O Ports: 2 x USB4 (40Gbps) Type-C 8 x USB 10Gbps (6 Type-A + 2 Type-C) 1 x HDMI 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet 2 x Gold-plated audio jacks 1 x Optical S/PDIF out 1 x BIOS FlashBack button 1 x Clear CMOS button
Internal I/O Connectors: 1 x 4-pin CPU Fan 1 x 4-pin CPU OPT Fan 1 x 4-pin AIO Pump 4 x 4-pin Chassis Fan 1 x W_PUMP+ 1 x 24-pin Main 2 x 8-pin +12V CPU 1 x Graphics card high power slot 1 x 12V-2X6 Auxiliary 5 x M.2 (Key M) 4 x SATA 6Gb/s 2 x USB 20Gbps Type-C
.: 2 x USB 5Gbps 2 x USB 2.0 3 x Addressable Gen2 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio 1 x Start button 1 x 10-1 pin System Panel 1 x Thermal Sensor
Accessories: 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener
.: 1 x USB drive with utilities and drivers 1 x Quick start guide
Additional Features: NOTE: – This motherboard requires a chassis that is BTF compatible – This motherboard supports Advanced BTF graphics cards – Click here to learn more about Asus BTF
The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen™ 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.
AMD X870E (AM5 Socket) ATX motherboard with a hidden-connector design and graphics card high-power slot for clean cable management
Advanced AI PC-ready
18+2+2 power stages, Dynamic OC Switcher
Core Flex
DDR5 slots with AEMP & NitroPath DRAM Technology
Wi-Fi 7 with ASUS WiFi Q-Antenna
Five M.2 slots onboard
Three PCIe® 5.0 M.2 slots onboard
PCIe® 5.0 x16 SafeSlot with PCIe® Slot Q-Release Slim and full support for next-gen graphics card
Two USB4® ports
One USB 20Gbps Type-C® front-panel connectors
AI Overclocking
AI Cooling II
AI Networking II
Polymo Lighting II
Advanced BTF Design
With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.
*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI 1 x DisplayPort
PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode) 2 x PCIe 3.0 x1
Storage: 2 x SATA III 1 x M.2 (2280) – PCIe 1 x M.2 (2260/2280) – PCIe
RAID: “Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices”
Wireless: –
LAN: GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported: “1 x USB 3.2 Gen1 Type-C (Rear) 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front)”
Back Panel I/O Ports: 2 x Antenna Mounting Points 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x RJ-45 LAN 1 x BIOS Flashback Button HD Audio Jacks
Internal I/O Connectors: 1 x Power LED and Speaker 1 x CPU Fan 3 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Panel Audio 2 x USB 2.0 1 x USB 3.2 Gen1
Accessories: 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets

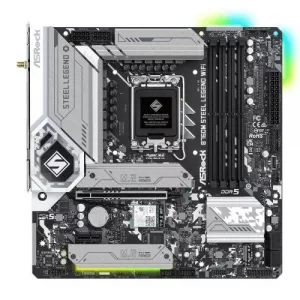

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI 1 x DisplayPort 1 x eDP 1.4
PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode) 1 x PCIe 4.0 x1
Storage: 4 x SATA III 1 x M.2 (2260/2280) – PCIe 1 x M.2 (2260/2280) – PCIe 1 x M.2 (2260/2280) – PCIe
RAID: “Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices”
Wireless: 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2×2 with ext 6GHz band support 2 antennas – 2 (Transmit) x 2 (Receive) diversity tech Supports Bluetooth 5.3 + High speed class II Supports MU-MIMO
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported: “1 x USB 3.2 Gen2 Type-C (at back) 1 x USB 3.2 Gen2 Type-A (at back) 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board) 6 x USB 2.0 (2 at back, 4 at mid-board) 1 x Front Panel Type-C USB 3.2 Gen2 Header”
Back Panel I/O Ports: 2 x Antenna 1 x PS/2 Mouse/Keyboard 1 x HDMI 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 4 x USB 3.2 Gen1 2 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks
Internal I/O Connectors: 1 x eDP Signal 1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x RGB LED 3 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 3 x Chassis/Water Pump Fan 1 x 24 pin ATX 2 x 8 pin 12V 1 x Front Panel Audio 2 x USB 2.0
.: 1 x USB 3.2 Gen1 1 x Front Panel Type C USB 3.2 Gen2
Accessories: 1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws for M.2 Sockets 3 x Standoffs for M.2 Sockets
Graphics specifications may vary between CPU types
Graphics Ports: 1 x VGA 1 x HDMI
Multi-GPU Support: –
PCI/PCI Express: 1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCIe 3.0 x1
Storage: 4 x SATA III 1 x M.2 (2242/2260/2280) – SATA & PCIe
RAID: “RAID 0, 1, 10”
Wireless: –
LAN: GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
USB Ports Supported: “6 x USB 3.2 Gen1 (4 at back, 2 at mid-board) 6 x USB 2.0 (2 at back, 4 at mid-board)”
Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard 1 x D-Sub 1 x HDMI 2 x USB 2.0 4 x USB 3.2 Gen1 1 x RJ-45 LAN HD Audio Jacks
Internal I/O Connectors: 1 x SPI TPM 1 x COM Port 1 x Chassis Intrusion and Speaker 1 x CPU Fan 2 x Chassis Fan 1 x 24 pin ATX 1 x 4 pin 12V 1 x Front Audio 2 x USB 2.0 1 x USB 3.2 Gen1
Accessories: 2 x SATA Data Cables 1 x Screw for M.2 Socket
*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI 1 x DisplayPort 1.4 1 x eDP 1.4
PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode) 1 x PCIe 4.0 x1
Storage: 4 x SATA III 1 x M.2 (2260/2280) – PCIe 1 x M.2 (2260/2280) – PCIe 1 x M.2 (2260/2280) – PCIe
RAID: “Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices”
Wireless: 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2×2 with extended 6GHz band support 2 antennas – 2 (Transmit) x 2 (Receive) diversity tech Supports Bluetooth + High speed class II Supports MU-MIMO
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported: “1 x USB 3.2 Gen2 Type-C (at back) 1 x USB 3.2 Gen2 Type-A (at back) 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board) 6 x USB 2.0 (2 at back, 4 at mid-board) 1 x Front Panel Type-C USB 3.2 Gen2 Header”
Back Panel I/O Ports: 2 x Antenna 1 x PS/2 Mouse/Keyboard 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 4 x USB 3.2 Gen1 2 x USB 2.0 1 x RJ-45 LAN HD Audio Jacks
Internal I/O Connectors: 1 x eDP Signal 1 x SPI TPM 1 x Chassis Intrusion and Speaker 1 x RGB LED 3 x Addressable LED 1 x CPU Fan 1 x CPU/Water Pump Fan 3 x Chassis/Water Pump Fan 1 x 24 pin ATX 2 x 8 pin 12V 1 x Front Panel Audio 2 x USB 2.0
.: 1 x USB 3.2 Gen1 1 x Front Panel Type-C USB 3.2 Gen2
Accessories: 1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets
