Description
Specification:
Operating System: Not Provided – Windows 11 Ready
Processor: AMD Ryzen 5 5500 3.60GHz (4.20GHz boost) 6-cores & 12 threads
Memory (RAM): ADATA 16GB DDR4 (upgradeable to 64GB DDR4)
Storage: ADATA 1TB PCIE 4.0 NVMe M.2 SSD
Storage Expansion: 2 x 3.5″/2.5″ Combo & 2 x 2.5″
Graphics: Gigabyte Nvidia GeForce RTX 3050 6GB Dual Fan Graphics Card with 2 x HDMI 2.1 & 2 x DisplayPort 1.4 ports
Motherboard: Gigabyte A520M K V2
Case: Deep Cool micro tower
Connections:
Front –
1 x USB 3.0
1 x USB 2.0
1 x HD Mic/Audio
Back:
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Networking:
Wired: Realtek 1Gbps GbE LAN
Peripherals: Marvo Scorpion CM420-UK 3-in-1 RGB Mechanical Keyboard, Mouse and Mouse Pad Gaming Bundle
Warranty: 3 years – parts and collection included (UK mainland only)
Processor
AMD Ryzen 5 5500 6 Core AM4 Processor, 12 Threads, 3.6GHz up to 4.2GHz Boost, 19MB Cache, 65W, with Wraith Stealth Cooler
Processor Cores
6
Processor Threads
12
Core Clock Speed
3.60GHz
Core Boost Speed
4.20GHz
OS Support
Windows 11 – 64-Bit Edition
Windows 10 – 64-Bit Edition
Windows 8.1 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
Memory
ADATA Premier AD4U32008G22-BGN 8GB (1x 8GB) DIMM System Memory, 3200MHz, DDR4, CL22
Voltage: 1.2V
Latency Timing: CL22
Speed: 3200MHz
2 x 8GB DIMM Memory
Memory Configuration
2 x 8GB
2 Lanes (2 occupied)
SSD Drive
Adata Legend 860 (SLEG-860-1000GCS) 1TB NVMe SSD, PCIe Gen4, M.2 Interface, 2280, Read 5000 MB/s, Write 3000 MB/s
TBW
640TB
MTBF
2,000,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe
Format
Gen4 x4 NVMe
Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 5000MB/S
Hard Drive
No Additional Drive Fitted
2 x 2.5″ or 3.5″ Drive Bays Available For Expansion
Optical Drive
No Optical Drive Fitted
Graphics
Gigabyte Nvidia GeForce RTX 3050 6GB Dual Fan Graphics Card
Core Clock
1477 MHz (Reference Card: 1470 MHz)
CUDA Cores
2304
Memory Clock
14000 MHz
Memory Size
6 GB
Memory Type
GDDR6
Memory Bus
96 bit
Card Bus
PCI-E 4.0
Digital Max Resolution
7680×4320
Multi-View
4
Graphics Card I/O
DisplayPort 1.4a x 2
HDMI 2.1 x 2
Operating System
Not Provided
Card Reader
No Card Reader Fitted
Networking
1 x Realtek GbE LAN chip (1 Gbps/100 Mbps) on motherboard
Power Supply
DeepCool PF400 80 PLUS Standard Power Supply 400W, Silent Hydraulic Bearing Fan, Reliable Protection, Flat Black Cables, 85% Efficiency
Main Power Connector 24 (20+4) Pin x 1
EPS 12V Connector 8 (4+4) Pin x 1
PCI-E (6+2) Pin x 2
SATA x 3
4 Pin Peripheral x 1
Motherboard
Gigabyte A520M K V2 Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN
Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Rear I/O
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Chassis

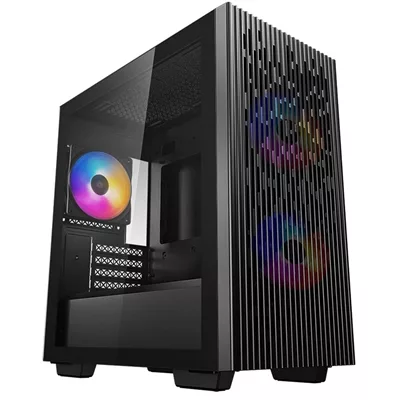

DeepCool MATREXX 40 3FS Case, Gaming, Black, Micro Tower, 1 x USB 3.0 / 1 x USB 2.0, Tempered Glass Side Window Panel, Mesh Front Panel for Optimized Airflow, Tri-Colour LED Fans
Drive Bays
Internal 3.5″: 2
Internal 2.5″: 2
IO Ports
1 x USB 3.0
1 x USB 2.0
1 x Audio
Power
Reset
Cooling
Front: 3 x 120mm / 2 x 140mm (2 x 120mm LED fans pre-installed)
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm DC fan (1 x 120mm LED fan pre-installed)
Dimensions
400mm x 215mm x 431mm
Package Weight
6.9 kg
Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)
