Quality of Service: 802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode Queue Weight Config Bandwidth Control Storm Control
Layer Features:L2 and L2+ Features: 16 IP Interfaces: Support IPv4/IPv6 Interface Static Routing: 32 IPv4/IPv6 Static Routes DHCP Server DHCP Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED Spanning Tree
.: “L2 Multicast: 511 IPv4, IPv6 shared multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering Limited IP Multicast (256 profiles and 16 entries per profile)”
VLAN: VLAN Group 802.1Q tag VLAN MAC VLAN: 16 Entries Protocol VLAN GVRP Voice VLAN
Access Control: Support up to 230 entries Time-Range Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation: Permit/Deny Policy Action ACL Rules Binding
Security: IP-MAC-Port Binding AAA 802.1X IP/IPv6-MAC Binding IP Source Guard IPv6 Source Guard DoS Defend DHCP Filter Static/Dynamic/Permanent Port Security Broadcast/Multicast/Unicast Storm Control Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control

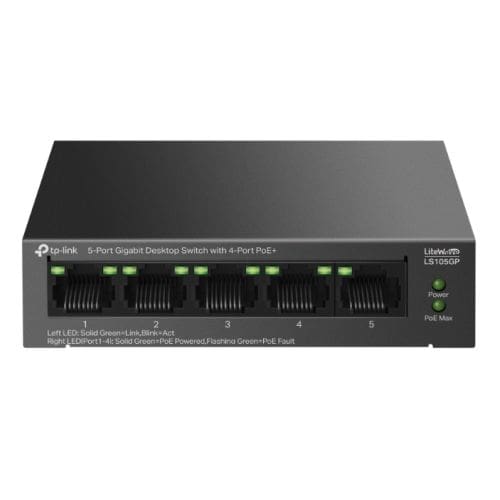

Interface(s): 5 x10/100/1000Mbps RJ45 AUTO Negotiation AUTO MDI/MDIX
PoE Ports (RJ45): “Standard: 802.3 af/at compliant PoE Ports: Ports 1–4, up to 30 W PoE output per port Power Supply: 65 W”
Switching Capacity: 10 Gbps
Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
Dimensions: 99.8 x 98 x 25 mm
Transfer Method: Store-And-Forward
Mac Address Table: 2K
Packet Forwarding Rate: 7.44 Mpps
Jumbo Frame: 16 KB
Additional Features: “Extend Mode Button (Ports 1–2, Up to 250m PoE power & data transmission) PoE Auto Recovery Button (Ports 1-4) Compatible With IEEE 802.3af/at Compliant PDs Mac Address Auto-Learning and Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Green Technology”
Interface(s): 2 x 10/100/1000 Mbps PoE++ RJ45 Ports 6 x 10/100/1000 Mbps PoE+ RJ45 Ports 2 x Gigabit SFP/RJ45 Combo Slots Auto-Negotiation/Auto MDI/MDIX
PoE Ports (RJ45): “Standard: 802.3af/at/bt compliant PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port
