Description
Key Features:
2 fixed omni directional antennas
Supports PPPoE, Dynamic IP, and static IP broadband functions
Automatic dialing, On-demand dialing, fixed time dialing, filling most dialing requirements
Supports UPnP, DDNS, static routing, VPN Pass-through
Supports virtual server, special application and DMZ host ideal for creating a website within your LAN
Supports SSID broadcast control and MAC access control list
Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X
Built-in firewall features IP, MAC, URL filtering which flexibly controls online access and time
Built-in DHCP server with automatic dynamic IP address distribution
User interface supports free WEB software updates
Supports configuration file backup and restore
Sleek exterior, can be mounted on a wall or placed horizontally on a table or desk
More Information

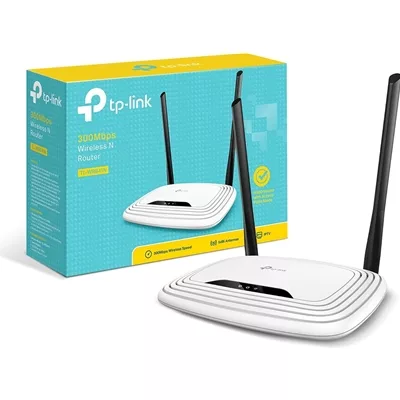

The TL-WR841N Wireless N Router is a combined wired/wireless network connection device designed specifically for small business, office, and home office networking requirements. It complies with the IEEE 802.11n(Draft 2.0)standard with wireless transmission speeds of up to 300M. The router adopts 2*2 MIMO technology and has two external Antennas providing even better wireless performance, transmission rates, stability and coverage. At the same time, CCA technology automatically avoids channel conflicts using its channel selection feature. It also works well with other 11g and 11n protocol wireless products.
The TL-WR841N provides multiple security measures; supporting SSID broadcast control, MAC address access control, WEP encryption, WPA/WPA2, and WPA-PSK/WPA2-PSK authentication. At the same time QSS(Quick Secure Setup)complies with WPS allowing for worry-free wireless security configuration. These combined security features will guard against intruders using stronger, safer protection.
The TL-WR841N allows companies, offices, and homes to share one Internet connection with more computers. Apart from this product? simple setup and more common broadband router functions, it also supports priority of service where applications using a lot of bandwidth that are sensitive to interruptions such as voice and video are given priority in order to assure quality. The router also supports on-demand dialing, online access management, Automatic virus isolation, UPnP, DDNS, advanced system security record, friendly user interface, and simple, easy configuration allowing all users to comfortably configure the router. This is a fashionable product with superior performance and should be your first choice when setting up a network.
Specifications
Standards and Protocols
Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
N300
2.4 GHz: 300 Mbps (802.11n)
WiFi Range
2 Bedroom Houses
2x Fixed Antennas
WiFi Capacity
Legacy
Working Modes
Router Mode
Access Point Mode
Range Extender Mode
WISP Mode
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
1x 2.4 GHz Guest Network
WiFi Encryption
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Processor
Single-Core CPU
Ethernet Ports
1x 10/100 Mbps WAN Port
4x 10/100 Mbps LAN Ports
Buttons
Reset Button
Power
9 V DC 0.6 A
Protocols
IPv4
IPv6
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
NAT Forwarding
VIrtual Server
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
DHCP
Address Reservation
DHCP Client List
Server
DDNS
NO-IP
Comex
DynDNS
Management Features
Tether App
Webpage
Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP
App management
Manage and configure device through app
Port: 22 Protocol: TCP
Port: 20001 Protocol: TCP
Port: 20002 Protocol: UDP
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS
Dimensions (W x D x H)
6.9 x 4.6 x 1.3 in
(173 x 118 x 33mm)
Package Content
Wi-Fi Router TL-WR841N
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
