Media Converters / Racks
Showing all 8 resultsSorted by latest
-
£21.78Description
Specification
- Type: Multi-Mode Media Converter
- Enclosure Type: External
- Basic Functions: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 2km - Ports: 2 x100M SC/UPC ports
1 x 10/100M RJ45 port (Auto MDI/MDIX) - Standards and Protocols: “IEEE802.3i, IEEE802.3u”
- Wave Length: 1310nm
- Network Media 10BASE-T: 2-pair UTP/STP of Cat. 3 or above (<100m)
- Network Media 100BASE-T: 2-pair UTP/STP of Cat. 5 or above (<100m)
- Transmission Distance: 2km
- LED Indicators: “PWR, FX Link/Act, TP Link/Act”
- Dimensions (WxDxH): 94.5 x 73.0 x 27.0 m
- Power Supply: 9V/0.6A
Max. Power Consumption: 1.19W - Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: MC100CM
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.5000 kg
- Warranty: 2 Years
20 in stock

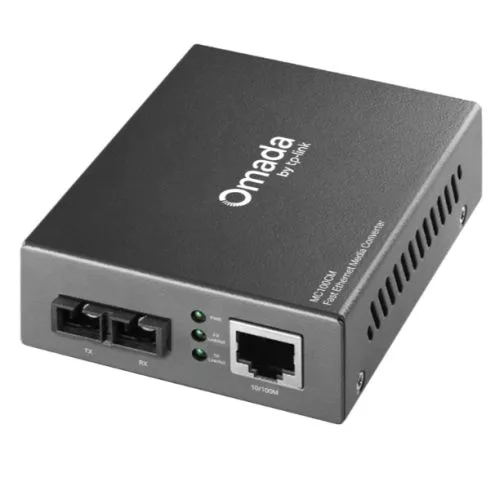

TP-LINK (MC100CM) Omada 10/100Mbps Multi-Mode Media Converter, up to 2km
£21.78 Add to basketQuick View -
£24.68Description
Specification
- Type: Single-Mode Media Converter
- Enclosure Type: External
- Basic Functions: Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
Extends fiber distance up to 20km - Ports: 1 x 100M SC/UPC port
1 x 10/100M RJ45 port (Auto MDI/MDIX) - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u”
- WDM TX: 1550nm
- Wave Length: 1550nm Tx/1310nm Rx
- WDM RX: 1310nm
- Network Media 10BASE-T: “UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Ohms STP (maximum 100m)” - Network Media 100BASE-T: “UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Ohms STP (maximum 100m)” - Network Media 100BASE-FX: Single-mode Fiber
- Transmission Distance: 20km
- LED Indicators: “PWR, Link/Act”
- Dimensions (WxDxH): 94.5 x 73.0 x 27.0 mm
- Power Supply: External Power Adapter
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Type: Retail
- Package Weight: 0.4800 kg
- Warranty: 2 Years
26 in stock

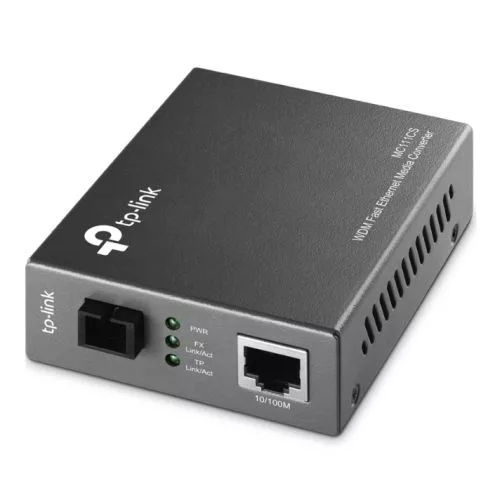

TP-LINK (MC111CS) Single-Mode SC Fiber WDM Media Converter, up to 20km, TX:1550nm, RX:1310nm
£24.68 Add to basketQuick View -
£81.30Description
Specification
- Type: SFP Media Converter
- Enclosure Type: External
- Basic Functions: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Maximum transmission distance depends on the inserting SFP module - Ports: 1 x SFP+ port
1 x 1G/2.5G/5G/10Gbps RJ45 port - Standards and Protocols: “IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x”
- Wave Length: SFP module dependant
- Network Media 10GBASE-R: Multi-mode/Single-mode SFP+ module
- Network Media 10BASE-T: “1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m);
10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m)” - Network Media 1000BASE-T: “UTP category 5, 5e cable (maxium 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)” - Network Media 1000BASE-X: Multi-mode/Single-mode SFP module
- LED Indicators: “PWR, Link/Act”
- Dimensions (WxDxH): 94.5 x 73.0 x 27.0 mm
- Power Supply: External Power Adapter
Max Power Consumption: 4.12W - Environment: Operating Temperature: 0°C~50°C
Storage Temperature: -40°C~70°C(-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: MC420L
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.4400 kg
- Warranty: 2 Years
13 in stock

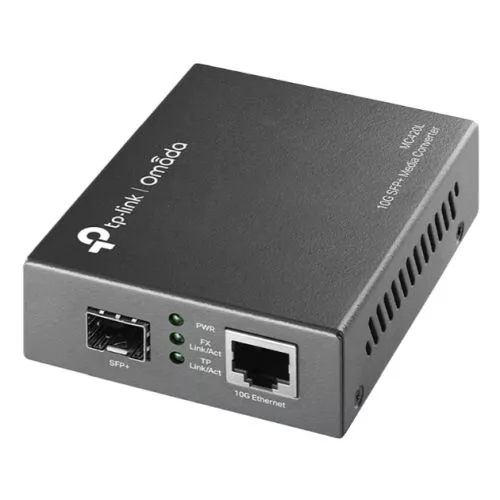

TP-LINK (MC420L) Omada 10G Multi-Gigabit SFP Media Converter, Auto-negotiation of Half-Duplex / Full-Duplex
£81.30 Add to basketQuick View -
£17.42Description
Specification
- Type: WDM Media Converter
- Enclosure Type: External
- Basic Functions: “Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20km” - Ports: 1 x 100 Mbps SC Fiber Port
1 x 10/100 Mbps RJ45 Port (Auto MDI/MDIX) - Standards and Protocols: “IEEE802.3, IEEE802.3i, IEEE802.3u”
- Wave Length: 1310nm Tx/1550nm Rx
- Network Media 100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (<100 m)
- Transmission Distance: 20km
- LED Indicators: “PWR, Link/Act”
- Dimensions (WxDxH): 94.5 x 73 x 27 mm
- Power Supply: External Power Adapter: 5 V/0.6 A
- Environment: Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Type: Retail
- Package Weight: 0.3500 kg
- Warranty: 2 Years
Out of stock
TP-LINK (TL-FC111B-20) 10/100 Mbps WDM Media Converter, up to 20km, 802.3u 10/100Base-TX, 100Base-FX, Single-Mode, Half-Duplex/Full-Duplex
£17.42 Read moreQuick View -
£17.42Description
Specification
- Type: SFP Media Converter
- Enclosure Type: External
- Basic Functions: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Maximum transmission distance depends on the inserting SFP module - Ports: 1 x 1000M SFP port
1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
“ - Wave Length: SFP module dependant
- Network Media 1000BASE-T: “UTP category 5, 5e cable (maxium 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)” - Network Media 1000BASE-X: Multi-mode/Single-mode SFP module
- LED Indicators: “PWR, Link/Act”
- Dimensions (WxDxH): 94.5 x 73.0 x 27.0 mm
- Power Supply: External Power Adapter
Max Power Consumption: 1.7W - Environment: Operating Temperature: 0°C~40°C(32°F~104°F)
Storage Temperature: -40°C~70°C(-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Type: Retail
- Package Weight: 0.5000 kg
- Warranty: 2 Years
Out of stock
TP-LINK (MC220L) Omada Gigabit SFP Media Converter, 1x GB Auto-Negotiation RJ45, Half-Duplex / Full-Duplex
£17.42 Read moreQuick View -
TP-LINK (MC210CS) Omada Gigabit Single-Mode Media Converter, 1x GB Auto-Negotiation RJ45, up to 20km£26.12Description
Specification
- Type: Single-Mode Media Converter
- Basic Functions: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 20km - Ports: 1 x 1000M SC/UPC port
1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z”
- Wave Length: 1310nm
- Network Media 1000BASE-T: “UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)” - Transmission Distance: 20km
- LED Indicators: “PWR, Link/Act”
- Dimensions (WxDxH): 94.5 x 73.0 x 27.0 mm
- Power Supply: External Power Adapter
- Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: Media Converter MC210CS
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.4800 kg
- Warranty: 2 Years
18 in stock
TP-LINK (MC210CS) Omada Gigabit Single-Mode Media Converter, 1x GB Auto-Negotiation RJ45, up to 20km
£26.12 Add to basketQuick View -
£30.48Description
Specification
- Type: Multi-Mode Media Converter
- Enclosure Type: External
- Basic Functions: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 0.55km using 50/125um fiber
Extends fiber distance up to 0.22km using 62.5/125um fiber - Ports: 1 x 1000M SC/UPC port
1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z”
- Wave Length: 850nm
- Network Media 10BASE-T: Multi-mode Fiber
- Network Media 1000BASE-T: “UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Ohms STP (maximum 100m)” - Network Media 1000BASE-FX: Multi-mode Fiber
- Transmission Distance: 0.55km
- LED Indicators: “PWR, Link/Act”
- Dimensions (WxDxH): 94.5 x 73.0 x 27.0 mm
- Power Supply: External Power Adapter
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: Media Converter MC200CM
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.5000 kg
- Warranty: 2 Years
3 in stock
TP-LINK (MC200CM) Omada Gigabit Multi-Mode Media Converter
£30.48 Add to basketQuick View -
£210.48Description
Specification
- Type: Media Converter Rackmount Chassis
- Enclosure Type: Rackmount
- Basic Functions: 14 bays to house up to 14 media converters
Hot-Swappable
Mounted two cooling fans - Dimensions (WxDxH): “482 x 358 x 86 mm
Standard 19-Inch, 2U height” - Power Supply: Input: 100-240V~50/60Hz
Output:14x 9VDC/0.6A - Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity:5%~90% non-condensing - Package Type: Retail
- Package Weight: 10.0800 kg
- Warranty: 2 Years
Out of stock
TP-LINK (MC1400) Omada 14-Slot Rackmount Chassis, 14 Bays for up to 14 Media Converters, Hot-Swappable, 2 Fans
£210.48 Read moreQuick View
