Switches
Showing all 113 resultsSorted by latest
-
Mercusys (MS105GS-M2) 5-Port 2.5G Multi-Gigabit Desktop Switch, 5x 2.5G Ports, Fanless, Metal Casing£46.63Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 2.5 Gbps
- Interface(s): “5 x 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX”
- PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz”
- Switching Capacity: 25 Gbps
- LED: Power
Link/Act Indicators - Power Supply: External Power Adapter (Output: 9 VDC / 0.6 A)
Max Power Consumption: 5.81 W - Dimensions: 99.8 x 98 x 25 mm
- Transfer Method: Store and Forward
- Mac Address Table: 4K
- Packet Forwarding Rate: 18.6 Mpps
- Jumbo Frame: 12KB
- Additional Features: 802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Fanless
Metal Casing - Environment: Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: 5-Port 2.5G Multi-Gigabit Desktop Switch MS105GS-M2
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 0.4900 kg
- Warranty: 3 Years
- #Hide#POE: No
20 in stock
Mercusys (MS105GS-M2) 5-Port 2.5G Multi-Gigabit Desktop Switch, 5x 2.5G Ports, Fanless, Metal Casing
£46.63 Add to basketQuick View -
£14.58Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): “5 x 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX”
- PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD”
- LED: “Ethernet Ports (1, 2, 3, 4, 5), Power”
- Power Supply: External Power Supply : 5V/0.6A
- Dimensions: 9.96 x 9.8 x 2.51 cm
- Transfer Method: Store and Forward
- Jumbo Frame: 9 KB
- Additional Features: See Overview
- Package Contents: 5-Port Gigabit Desktop Switch (MS105GS)
Power Adapter
Quick Installation Guide - Package Type: Retail
- Package Weight: 0.3400 kg
- Warranty: 3 Years
- #Hide#POE: No
Out of stock
Mercusys (MS105GS) 5-Port Gigabit Unmanaged Desktop Switch, Steel Case
£14.58 Read moreQuick View -
£76.94Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 6
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 4 x10/100/1000 Mbps PoE+ RJ45
1 x 10/100/1000 Mbps RJ45
1 x Gigabit SFP - PoE Ports (RJ45): Standard: 802.3at/af compliant
PoE+ Ports: 4 Ports
PoE Power Budget: 63 W*
Fast PoE
Perpetual PoE - Switching Capacity: 12 Gbps
- Power Supply: 53.5 VDC / 1.31 A
- Dimensions: 158 x 100.7 x 25.4 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 8.93 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Durable metal casing
Desktop/wall mounting design
Physical security lock - Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control - Layer Features: L2 and L2+ Features:
16 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED
Spanning Tree - .: “L2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)” - VLAN: VLAN Group
802.1Q tag VLAN
MAC VLAN: 16 Entries
Protocol VLAN
GVRP
Voice VLAN - Access Control: Support up to 230 entries
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
ACL Rules Binding - Security: IP-MAC-Port Binding
AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
DHCP Filter
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control - Management: “Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
IEEE 802.1az Energy Efficient Ethernet
SNTP
System Log
DDM
OAM” - Environment: Operating Temperature: -5°C ~40°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: SG2206MP
Power Adapter
Power Cord
Rackmount Kit
Rubber Feet
Installation Guide - Package Type: Retail
- Package Weight: 1.0200 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
6 in stock
TP-LINK (SG2206MP) Omada Access 6-Port Gigabit Switch with 4-Port PoE+, 5x GB RJ45, 1x GB SFP, Centralized Management, Metal Casing
£76.94 Add to basketQuick View -
£71.13Description
Specification
- Rackmountable: No
- Managed: Yes
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
- PoE Ports (RJ45): “Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 8 ports
PoE Budget: 64W available for all PoE+ ports, 30W max per port
Remote Camera Reboot
Up to 820ft (250m) PoE transmission distance” - Switching Capacity: 16 Gbps
- Power Supply: DC Power Adapter (Output: 53.5V DC / 1.31A)
- Dimensions: 158 x 100.7 x 25.4 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 11.904 Mpps
- Jumbo Frame: 15 KB
- Additional Features: Fanless
Durable metal casing
Desktop/wall mounting design
Physical security lock - Quality of Service: 802.1p DSCP Priority
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control - Layer Features: L2 Features:
Link Aggregation
Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDPL2 Multicast:
IGMP Snooping - VLAN: MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN - Management: “Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software ControllerCloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller” - .:
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics - Environment: Operating Temperature: 0°C ~40°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: ES208GP
Power Adapter
Power Cord
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 0.9900 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
6 in stock
TP-LINK (ES208GP) Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+, Fanless, Metal Casing
£71.13 Add to basketQuick View -
£319.36Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10 Gbps
- Interface(s): “8 x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports
Auto-Negotiation, Auto-MDI/MDIX” - PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz”
- Switching Capacity: 160 Gbps
- LED: “System Power: 1
Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port” - Power Supply: “100-240 VAC, 50/60 Hz, 0.8A
Max Power Consumption: 31.2 W” - Dimensions: 294 x 180 x 44 mm
- Transfer Method: Store and Forward
- Mac Address Table: 32 K
- Packet Forwarding Rate: 2 Mb
- Jumbo Frame: 10 KB
- Additional Features: 802.3X Flow Control
- Quality of Service: 802.1p/DSCP QoS
- Management: –
- Environment: Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: 8-Port 10G Multi-Gigabit Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.0860 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
Out of stock
TP-LINK (TL-SX1008) 8-Port Unmanaged 10G Multi-Gigabit Desktop/Rackmount Switch, 8x 100/1G/2.5G/5G/10G, Low-Noise Fan, Steel Case
£319.36 Read moreQuick View -

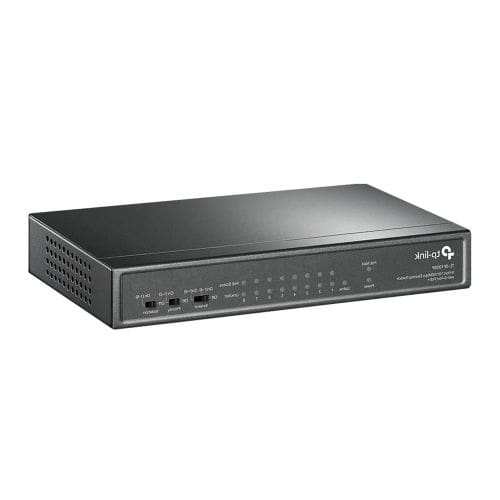

TP-LINK (TL-SL1311P) 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+, GB SFP Port£58.06Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 10
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 8 x10/100 Mbps 802.3af/at PoE+ Ports
2 x Gigabit RJ45 Ports
1 x Gigabit SFP Port
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Ports 1–8
Power Supply: 65 W - Switching Capacity: 7.6 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
- Dimensions: (WxDxH) 209 x 126 x 26 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 5.6544 Mpps
- Jumbo Frame: 16 KB
- Additional Features: “Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4 & Ports 1–8, Up to 250m PoE power & data transmission)
Isolation Mode Button (Ports 1–8)
PoE Auto Recovery Button (Ports 1–8)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode” - Security: Physical Security Lock
- Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SL1311P
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 1.3300 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
4 in stock
TP-LINK (TL-SL1311P) 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+, GB SFP Port
£58.06 Add to basketQuick View -
£72.58Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 8 x 10/100 Mbps 802.3af/at PoE+ Ports
2 Gigabit RJ45 Ports
1 Gigabit SFP Port
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Ports 1-8
Power Supply: 124 W - Switching Capacity: 7.6 Gbps
- Power Supply: External Power Adapter: Output: 53.5VDC / 2.43A
- Dimensions: 209 x 126 x 26 mm
- Mac Address Table: 2K
- Packet Forwarding Rate: 5.6544 Mpps
- Jumbo Frame: 16 KB
- Additional Features: Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button
Isolation Mode Button
PoE Auto Recovery Button
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode - Security: Physical Security Lock
- Environment: Operating Temperature: 0-40 (32-104 )
Storage Temperature: -40-70 (-40-158 )
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing - Package Contents: TL-SL1311MP
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 1.5940 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
12 in stock
TP-LINK (TL-SL1311MP) 8-Port Unmanaged Desktop PoE+ Switch, 8-Port 10/100Mbps + 2-Port Gigabit RJ45 & 1 Gigabit SFP
£72.58 Add to basketQuick View -
£182.90Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 24
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 24 x PoE+ 10/100 Mbps RJ45 Ports
2 x 10/100/1000 Mbps RJ45 Ports
2 x Combo Gigabit SFP Slots - PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
PoE Ports: Port 1 – Port 24
PoE Power Budget: 250 W - Bandwidth: 8.8 Gbps
- Power Supply: “100-240 VAC, 50/60 Hz”
- Dimensions: 440 x 180 x 44 mm (W x D x H)
- Mac Address Table: 8 K
- Additional Features: Compatible With IEEE 802.3at/af Compliant PDs
Extend Mode (Up to 250m PoE power supply and data transmission)
Priority Mode
Isolation Mode
PD Detection
Intelligent Power Supply
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control - Security: Physical Security Lock
- Management: –
- Environment: Operating Temperature: 0–50 °C (32–122 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% non-condensing
Storage Humidity: 5–90% non-condensing - Package Contents: TL-SL1226P
Power Cable
Installation Guide
Two mounting brackets and the fittings - Package Type: Retail
- Package Weight: 2.9600 kg
- Warranty: Lifetime Warranty
- #Hide#POE: Yes
29 in stock
TP-LINK (TL-SL1226P) 24-Port 10/100Mbps + 2-Port GB Unmanaged PoE+ Switch, 2 combo GB SFP Slots, 24-Port PoE, Rackmountable
£182.90 Add to basketQuick View -
£133.54Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 16 x PoE+ 10/100 Mbps RJ45 Ports
2 x 10/100/1000 Mbps RJ45 Ports
1 x Combo Gigabit SFP Slot - PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1–16
PoE Power Budget: 150 W - Switching Capacity: 7.2 Gbps
- Power Supply: “100–240V AC, 50/60 Hz
Max consumption:
12.71 W (220/50Hz. no PD connected)
172.8 W (220/50Hz. with 150 W PD connected)” - Dimensions: 440 x 180 x 44 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 5.36 Mpps
- Jumbo Frame: 10 KB
- Additional Features: Compatible With IEEE 802.3at/af Compliant PDs
Extend Mode (Up to 250m PoE power supply and data transmission)
Priority Mode
Isolation Mode
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control - Security: Physical Security Lock
- Management: –
- Environment: Operating Temperature: 0–50 °C (32–122 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SL1218P
Power Cable
Installation Guide
Two mounting brackets and the fittings - Package Type: Retail
- Package Weight: 2.8000 kg
- Warranty: Lifetime Warranty
- #Hide#POE: Yes
Out of stock
TP-LINK (TL-SL1218P) 16-Port 10/100Mbps + 2-Port GB Unmanaged Rackmount PoE+ Switch, Combo GB SFP Slot, 16-Port PoE+
£133.54 Read moreQuick View -
£139.36Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 16 x 10/100Mbps RJ45 Ports
2 x 10/100/1000Mbps RJ45 Ports
2 x Gigabit SFP Slots - PoE Ports (RJ45): 16 PoE+ 10/100Mbps RJ45 ports
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W - Switching Capacity: 7.2Gbps
- Power Supply: “100-240V AC, 50/60Hz”
- Dimensions: 440 x 180 x 44 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 5.36Mpps
- Jumbo Frame: 10KB
- Additional Features: Extend Mode (Up to 250m PoE power supply and data transmission)
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing - Package Type: Retail
- Package Weight: 2.9530 kg
- Warranty: Lifetime Warranty
- #Hide#POE: Yes
13 in stock
TP-LINK (TL-SL1218MP) 16-Port 10/100Mbps + 2-Port GB Unmanaged PoE Switch, 2 combo GB SFP Slots, 16-Port PoE, Rackmountable
£139.36 Add to basketQuick View -
£203.23Description
Specification
- Rackmountable: Yes
- Managed: Smart
- Number of Ports: 28
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 26 x 10/100/1000 Mbps RJ45 Ports
2 x Gigabit SFP Ports - PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W - Standards and Protocols: “IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p” - Switching Capacity: 56 Gbps
- Power Supply: “100-240V AC, 50/60 Hz
Max Consumption:
27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)” - Dimensions: 440 x 220 x 44 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 41.7 Mbps
- Jumbo Frame: 9 KB
- Additional Features: See Overview
- Quality of Service: Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - Layer Features: L2 Features:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery - VLAN: Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Security: Physical security lock
- Management: Web-Based GUI
Easy Smart Configuration Utility - Environment: Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG1428PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 4.0000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
58 in stock
TP-LINK (TL-SG1428PE) 28-Port Gigabit PoE+ Easy Smart Switch, 24-Port PoE+, 2 SFP Ports, Rackmountable
£203.23 Add to basketQuick View -
£188.70Description
Specification
- Rackmountable: Yes
- Managed: Smart
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 16 x 10/100/1000 Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 x Gigabit SFP Ports - PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
PoE+ Ports: 16 Ports
Power Supply: 192W - Standards and Protocols: “IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p” - Switching Capacity: 36Gbps
- Power Supply: “100-240V AC, 50/60 Hz”
- Dimensions: 440 x 180 x 44 mm
- Mac Address Table: 8K
- Port Forwarding: Yes
- Packet Forwarding Rate: 23.8 Mbps
- Jumbo Frame: 9 KB
- Additional Features: See Overview
- Quality of Service: Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - VLAN: Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Management: Web-based GUI
Easy Smart Configuration Utility - Environment: Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG1218MPE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.0500 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
48 in stock
TP-LINK (TL-SG1218MPE) 16-Port Gigabit PoE+ Easy Smart Switch, 2 SFP Ports, Rackmountable
£188.70 Add to basketQuick View -
£171.29Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 18
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 16 x PoE+ gigabit RJ45 ports
2 x gigabit non-PoE RJ45 ports
2 x combo gigabit SFP slots - PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1–16
PoE Power Budget: 250 W - Standards and Protocols: “IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p”
- Switching Capacity: 36 Gbps
- Power Supply: “100–240 VAC, 50/60 Hz
Max Consumption:
21.4 W (220/50 Hz. no PD connected)
286.64 W (220/50 Hz. with 250 W PD connected)” - Dimensions: 440 x 180 x 44 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 26.78 Mbps
- Jumbo Frame: 10 KB
- Additional Features: See Overview
- Quality of Service: 802.1p/DHCP QoS
- Security: Physical security lock
- Management: –
- Environment: Operating Temperature: 0–50 °C (32–122 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG1218MP
Installation Guide
Power Cord
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.0700 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
14 in stock
TP-LINK (TL-SG1218MP) 18-Port Gigabit Unmanaged PoE+ Rackmount Switch, 16-Port PoE+, 2 SFP Ports
£171.29 Add to basketQuick View -
£140.81Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 10
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 9 x 10/100/1000Mbps RJ45 Ports
1 x 1000Mbps Combo SFP/RJ45 Port
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Port 1-2 compliance with 802.3af/at/bt
Ports 3-8 compliance with 802.3af/at
Power Supply: 123 W - Switching Capacity: 20 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
Consumption:
8.7 W (220/50 Hz. no PD connected)
144.1 W (220/50 Hz. with 123 W PD connected) - Dimensions: (WxDxH) 209 x 126 x 26 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 4K
- Packet Forwarding Rate: 14.88 Mpps
- Additional Features: “Compatible With IEEE 802.3af/at/bt Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
PoE Auto Recovery (Ports 1-8)
Isolation Mode (Ports 1-4/5-8)
Priority Mode (Ports 1-2)
Extend Mode Button (Ports 1–4, Up to 250m PoE power supply and data transmission)” - Management: Unmanaged
- Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG1210PP
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 1.7500 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (TL-SG1210PP) 10-Port Gigabit Desktop Switch with 6-Port PoE+ & 2-Port PoE++
£140.81 Read moreQuick View -
£82.74Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 10
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
1 x 10/100/1000Mbps RJ45 Port
1 x Gigabit SFP Slot - PoE Ports (RJ45): Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W - Bandwidth: 20 Gbps
- Power Supply: External Power Adapter(Output: 53.5VDC / 1.31A)
- Dimensions: 209 x 126 x 26 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 4K
- Additional Features: Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping - Security: Physical Security Lock
- Environment: Operating Temperature: 0°C~40°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG1210P
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.2750 kg
- Warranty: Lifetime Warranty
- #Hide#POE: Yes
22 in stock
TP-LINK (TL-SG1210P) 10-Port GB Desktop Switch, 9 RJ45 + 1 SFP Port, 8-Port PoE+, Metal Casing
£82.74 Add to basketQuick View -
£97.55Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 10
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 9 x 10/100/1000 Mbps RJ45 Ports
1 x 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Ports 1-8
Power Supply: 123 W - Switching Capacity: 20 Gbps
- Power Supply: External Power Adapter (Output: 53.5VDC / 2.43A)
- Dimensions: 209 x 26 x 126 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 4K
- Packet Forwarding Rate: 14.88 Mpps
- Jumbo Frame: 16 KB
- Additional Features: “Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4, Up to 250m PoE power and data transmission)
Priority Mode Button (Ports 1–2)
Isolation Mode Button (Ports 1–4 / 5-8)
PoE Auto Recovery (Ports 1-8)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode” - Security: Physical Security Lock
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG1210MP
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 1.6100 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
15 in stock
TP-LINK (TL-SG1210MP) 10-Port Gigabit Desktop Switch with 8-Port PoE+, 9-Port RJ45 & 1-Port Combo SFP/RJ45
£97.55 Add to basketQuick View -
£155.32Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 16 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Ports 1–16
Power Supply: 120 W - Switching Capacity: 32 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
- Dimensions: (WxDxH) 286 x 111.7 x 25.4 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: “8K, Auto-learning, Auto-aging”
- Packet Forwarding Rate: 23.8 Mpps
- Additional Features: “Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4, Up to 250m PoE power & data transmission)
Priority Mode Button (Ports 1–4)
Isolation Mode Button (Ports 1–7 / 8-14)
PoE Auto Recovery (Ports 1-16)
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
IGMP Snooping” - Quality of Service: 802.1p/DSCP QoS
- Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG116P
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 2.2500 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
3 in stock
TP-LINK (TL-SG116P) 16-Port Gigabit Desktop Switch with 16-Port PoE+
£155.32 Add to basketQuick View -
£72.58Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 16 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p”
- Switching Capacity: 32Gbps
- Power Supply: External Power Adapter
(Output: 12VDC/1A) - Dimensions: 286 x 111.7 x 25.4 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 23.81Mpps
- Jumbo Frame: 9KB
- Additional Features: See Overview
- Quality of Service: Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - Layer Features: IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention - VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG116E
Power Cord
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 1.3400 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
Out of stock
TP-LINK (TL-SG116E) 16-Port Gigabit Unmanaged Pro Switch, Steel case
£72.58 Read moreQuick View -
£55.59Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): “Auto-Negotiation, Auto-MDI/MDIX”
- PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p”
- LED: System Power
Link/Act indicators per port built into each RJ-45 port - Power Supply: External Power Adapter (Output: 12VDC / 1.0A)
- Dimensions: 286 x 112 x 25 mm
- Transfer Method: Store and Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 4.1Mb
- Jumbo Frame: 10KB
- Additional Features: Green Technology
802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping - Environment: “Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing” - Package Contents: 16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 1.3400 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
11 in stock
TP-LINK (TL-SG116) 16-Port Gigabit Unmanaged Desktop Switch, Steel Case
£55.59 Add to basketQuick View -
£64.60Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 64W - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at” - Switching Capacity: 16 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)
Consumption:
5.41 W (220V/50Hz with no PD connected)
74.27 W (220V/50Hz with 64 W PD connected) - Dimensions: (WxDxH) 158 x 101 x 25 mm
- Mac Address Table: 4K
- Packet Forwarding Rate: 11.9 Mpps
- Jumbo Frame: 16 KB
- Additional Features: See Overview
- Quality of Service: Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - Layer Features: L2:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery - VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Management: Web-based GUI
Easy Smart Configuration Utility - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG108PE
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 0.9100 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
36 in stock
TP-LINK (TL-SG108PE) 8-Port Gigabit Easy Smart Switch with 4-Port PoE+, Steel Case
£64.60 Add to basketQuick View -
£36.29Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p”
- Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 158 x 101 x 25 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 11.9Mpps
- Jumbo Frame: 16KB
- Quality of Service: Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control - Layer Features: IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention - VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG108E
Power Cord
Installation Guide
Resource CD
Rubber Feet - Package Type: Retail
- Package Weight: 0.6500 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
18 in stock
TP-LINK (TL-SG108E) 8-Port Gigabit Easy Smart Switch, Steel Case
£36.29 Add to basketQuick View -
£25.84Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): “8 x 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX”
- Standards and Protocols: IEEE 802.3/802.3u/ 802.3ab/ 802.3x
CSMA/CD - LED: “System Power
Link, Speed and activity indicators per port built into each RJ-45 port” - Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
- Transfer Method: Store and Forward
- Additional Features: “Green Technology,saving power up to 72%
802.3X Flow Control
Supports QoS (IEEE802.1P)” - Environment: “Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing” - Package Contents: 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
User Guide - Package Type: Retail
- Package Weight: 0.6400 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
239 in stock
TP-LINK (TL-SG108) 8-Port Gigabit Unmanaged Desktop Switch, Steel Case
£25.84 Add to basketQuick View -
£55.59Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at” - Switching Capacity: 10 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)
- Transfer Method: Store-And-Forward
- Mac Address Table: 2 K
- Packet Forwarding Rate: 7.44 Mpps
- Jumbo Frame: 16 KB
- Additional Features: See Overview
- Quality of Service: Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - Layer Features: L2
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode - VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Management: Web-based GUI
Easy Smart Configuration Utility - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing - Package Contents: TL-SG105PE
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 0.8000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
12 in stock
TP-LINK (TL-SG105PE) 5-Port Gigabit PoE Easy Smart Switch, 4-Port PoE+, Steel Case
£55.59 Add to basketQuick View -
£97.25Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 120 W - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at” - Switching Capacity: 10 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
- Dimensions: (WxDxH) 99.8 x 98 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 2 K
- Packet Forwarding Rate: 7.44 Mpps
- Jumbo Frame: 16 KB
- Quality of Service: Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - Layer Features: L2 Features:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode - VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Management: Web-based GUI
Easy Smart Configuration Utility - Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing - Package Contents: TL-SG105MPE
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 1.1000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (TL-SG105MPE) 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Steel Case
£97.25 Read moreQuick View -
£22.79Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p”
- Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 100 x 98 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 7.4Mpps
- Jumbo Frame: 16KB
- Quality of Service: Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control - Layer Features: IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention - VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG105E
Power Cord
Installation Guide
Resource CD
Rubber Feet - Package Type: Retail
- Package Weight: 0.4500 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
19 in stock
TP-LINK (TL-SG105E) 5-Port Gigabit Easy Smart Switch, Steel Case
£22.79 Add to basketQuick View -
£66.77Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 2.5 Gbps
- Interface(s): “5 x 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX”
- PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz”
- Switching Capacity: 25 Gbps
- LED: “System Power: 1
Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port” - Power Supply: External Power Adapter (Output: 12 VDC / 1 A)
- Dimensions: 209 x 126 x 26 mm
- Transfer Method: Store and Forward
- Mac Address Table: 16 K
- Packet Forwarding Rate: 18.6 Mpps
- Jumbo Frame: 10 KB
- Additional Features: 02.3X Flow Control
- Quality of Service: 802.1p/DSCP QoS
- Management: –
- Environment: Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 0.9800 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
15 in stock
TP-LINK (TL-SG105-M2) 5-Port Unmanaged 2.5G Multi-Gigabit Desktop Switch, 5x 100/1G/2.5G, Fanless, Steel Case
£66.77 Add to basketQuick View -
£18.29Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): “5 x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports”
- Standards and Protocols: IEEE 802.3/802.3u/ 802.3ab/ 802.3x
CSMA/CD - LED: “System Power
Link, Speed and activity indicators per port built into each RJ-45 port” - Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
- Transfer Method: Store and Forward
- Additional Features: “Green Technology, saving power up to 65%
802.3X Flow Control, supports QoS (IEEE802.1P), IGMP Snooping function” - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
User Guide - Package Type: Retail
- Package Weight: 0.5300 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
69 in stock
TP-LINK (TL-SG105) 5-Port Gigabit Unmanaged Desktop Switch, Steel Case
£18.29 Add to basketQuick View -
£232.25Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 48
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 48 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 17.3 x 10.2 x 1.7 in. (440 x 260 x 44 mm)
- Transfer Method: Store and Forward
- Mac Address Table: 8K
- Additional Features: “802.3X Flow Control, Back Pressure
Auto-Uplink Every Port” - Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing” - Package Contents: 48-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet - Package Type: Retail
- Package Weight: 3.7900 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
4 in stock
TP-LINK (TL-SG1048) 48-Port Gigabit Unmanaged Rackmount Switch, Steel Case
£232.25 Add to basketQuick View -
£88.98Description
Specification
- Managed: No
- Number of Ports: 24
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 24 x 10/100/1000Mbps Auto-Negotiation RJ45 ports
(Auto MDI/MDIX) - Switching Capacity: 48Gbps
- Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
- Transfer Method: Store and Forward
- Additional Features: “802.3X Flow Control, Back Pressure
Auto-Uplink Every Port” - Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing” - Package Contents: 24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet - Package Type: Retail
- Package Weight: 2.2700 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
Out of stock
TP-LINK (TL-SG1024D) 24-Port Gigabit Unmanaged Desktop/Rackmount Switch, Steel Case
£88.98 Read moreQuick View -
£88.98Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 24
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 24 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - Switching Capacity: 48Gbps
- Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
- Transfer Method: Store and Forward
- Mac Address Table: 8K
- Additional Features: “802.3X Flow Control, Back Pressure
Auto-Uplink Every Port” - Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
“ - Package Contents: 24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet - Package Type: Retail
- Package Weight: 2.6000 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
13 in stock
TP-LINK (TL-SG1024) 24-Port Gigabit Unmanaged Rackmount Switch, Steel Case
£88.98 Add to basketQuick View -
£133.54Description
Specification
- Rackmountable: Yes
- Managed: Smart
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 16 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W - Standards and Protocols: “IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p”
- Switching Capacity: 32Gbps
- Power Supply: “100-240VAC, 50/60Hz / PoE”
- Dimensions: 294 x 180 x 44 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 23.8Mbps
- Jumbo Frame: 9KB
- Additional Features: See Overview
- Quality of Service: Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - Layer Features: L2 Features:
IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention - VLAN: Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Management: Web-based GUI
Easy Smart Configuration Utility - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.4600 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
28 in stock
TP-LINK (TL-SG1016PE) 16-Port Gigabit Easy Smart Desktop/Rackmount Switch, 8-Port PoE+, Metal
£133.54 Add to basketQuick View -
£61.26Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 16 x 10/100/1000Mbps Auto-Negotiation RJ45 ports
(Auto MDI/MDIX) - Switching Capacity: 32Gbps
- Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
- Transfer Method: Store and Forward
- Additional Features: “802.3X Flow Control, Back Pressure
Auto-Uplink Every Port” - Package Contents: 16-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet - Package Type: Retail
- Package Weight: 2.1500 kg
- Warranty: Limited Lifetime Warranty
- #Hide#POE: No
56 in stock
TP-LINK (TL-SG1016D) 16-Port Gigabit Unmanaged Desktop/Rackmount Switch, Steel Case
£61.26 Add to basketQuick View -
£65.33Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 16 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - Switching Capacity: 32Gbps
- Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
- Transfer Method: Store and Forward
- Mac Address Table: 8K
- Additional Features: “802.3X Flow Control, Back Pressure
Auto-Uplink Every Port” - Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing” - Package Contents: 16-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet - Package Type: Retail
- Package Weight: 2.1500 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
32 in stock
TP-LINK (TL-SG1016) 16-Port Gigabit Unmanaged Rackmount Switch, Steel Case
£65.33 Add to basketQuick View -
£51.53Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 53W - Bandwidth: 16Gbps
- Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
- Dimensions: 6.7 x 9 x 1.1 in. (171 x 98 x 27 mm)
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Additional Features: Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG1008P
ower Adapter
User Guide - Package Type: Retail
- Package Weight: 1.1700 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
23 in stock
TP-LINK (TL-SG1008P) 8-Port Gigabit Unmanaged Desktop Switch, 4-Port PoE, Steel Case
£51.53 Add to basketQuick View -
£103.06Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3at/af compliant
PoE Ports: 8 Ports
Power Supply: 124W - Bandwidth: 16Gbps
- Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Additional Features: Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C(-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.1000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
63 in stock
TP-LINK (TL-SG1008MP) 8-Port Gigabit Unmanaged Desktop/Rackmount Switch, 8-Port PoE+, Metal
£103.06 Add to basketQuick View -
£16.55Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 6.5 x 4.3 x 1.1 in. (165mm x 108mm x 28mm)
- Transfer Method: Store and Forward
- Mac Address Table: 8K
- Additional Features: “Green Technology, saving power up to 80%
802.3X Flow Control, Back Pressure
Auto-Uplink Every Port” - Environment: “Operating Temperature: 0C~40C (32F~104F); Storage Temperature: -40C~70C (-40F~158F); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing”
- Package Contents: 8-Port Gigabit Desktop Switch
Power Adapter
User Guide - Package Type: Retail
- Package Weight: 0.3900 kg
- Warranty: 3 Years
- #Hide#POE: No
29 in stock
TP-LINK (TL-SG1008D) 8-Port Gigabit Unmanaged Desktop Switch, Plastic Case
£16.55 Add to basketQuick View -
£50.80Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000Mbps RJ45
1 x 10/100/1000 Mbps RJ45 PoE In
4 x 10/100/1000 Mbps RJ45 PoE Out
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): “PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4
PoE Out Ports: Ports 1-4, compliance with 802.3af/atPoE Power Budget:
66 W when powered by 802.3bt Type 4 (90 W)
47 W when powered by 802.3bt Type 3 (60 W)
21 W when powered by 802.3at (30 W)
9 W when powered by 802.3af (15.4 W)” - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p”
- Switching Capacity: 10 Gbps
- Power Supply: “Only Powered by PoE Device
Max Power Consumption:
2.68 W (90W PoE In, with no PD connected)
68.59 W (90W PoE In, with 66 W PD connected)” - Dimensions: (WxDxH) 158 x 101 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 7.44 Mpps
- Additional Features: “Extend Mode Button (Ports 1–2, Up to 250m PoE power and data transmission)
PoE Auto Recovery (Ports 1-4)
Mac Address Auto-Learning and Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Fanless” - Management: Unmanaged
- Environment: Operating Temperature: 30–70°C
Storage Temperature: -40–70°C
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG1005P-PD
Installation Guide - Package Type: Retail
- Package Weight: 0.4600 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
6 in stock
TP-LINK (TL-SG1005P-PD) 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out, Long-Range PoE+
£50.80 Add to basketQuick View -
£39.19Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000Mbps RJ45 Ports
1 x AUTO Negotiation
1 x AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Ports 1-4
Power Supply: 40 W - Switching Capacity: 10 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
Max Power Consumption:
4.12 W (220/50 Hz. no PD connected)
47.5 W (220/50 Hz. with 40 W PD connected) - Dimensions: 99.8 x 98 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 7.44 Mpps
- Jumbo Frame: 16 KB
- Additional Features: Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping - Quality of Service: 802.1p/DSCP QoS
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG1005LP
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.7700 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
24 in stock
TP-LINK (TL-SG1005LP) 5-Port Gigabit Unmanaged Desktop Switch, 4-Port PoE, Intelligent Power, Steel Case
£39.19 Add to basketQuick View -
£13.35Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
Max Consumption: 3.1W - Dimensions: 140 x 88 x 23 mm
- Transfer Method: Store and Forward
- Additional Features: Green Technology
802.3x Flow Control
Back Pressure
802.1p/DSCP QoS (for version 7 or later) - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C ~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: 5-Port Gigabit Desktop Switch TL-SG1005D
Power Adapter
User Guide - Package Type: Retail
- Package Weight: 0.4600 kg
- Warranty: 3 Years
- #Hide#POE: No
51 in stock
TP-LINK (TL-SG1005D) 5-Port Gigabit Unmanaged Desktop Switch, Plastic Case
£13.35 Add to basketQuick View -
£43.55Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 24
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): 24 x 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
- Bandwidth: 4.8Gbps
- Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3x”
- Switching Capacity: 4.8Gbps
- Power Supply: External Power Adapter (Output: 9VDC/0.6A)
Max Power Consumption: 3.19W(220V/50Hz) - Dimensions: 294 x 180 x 44 mm
- Transfer Method: Store-and-Forward
- Mac Address Table: 8k
- Packet Forwarding Rate: 3.57Mpps
- Additional Features: See Overview
- Security: Physical Security Lock
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: 24-Port 10/100Mbps Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 1.9300 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
15 in stock
TP-LINK (TL-SF1024D) 24-Port 10/100 Unmanaged Desktop/Rackmount Switch, Steel Case
£43.55 Add to basketQuick View -
£30.48Description
Specification
- Rackmountable: Yes
- Managed: No
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): 16 x 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3x”
- Switching Capacity: 3.2Gbps
- Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 294 x 180 x 44 mm
- Transfer Method: Store-and-Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 2.38Mpps
- Additional Features: See Overview
- Security: Physical Security Lock
- Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F);
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing” - Package Contents: 16-Port 10/100Mbps Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.2100 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
32 in stock
TP-LINK (TL-SF1016DS) 16-Port 10/100Mbps Unmanaged Desktop/Rackmount Switch, 13-inch Steel Case
£30.48 Add to basketQuick View -
£23.22Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): 16 x 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - Power Supply: “100~240VAC, 50/60Hz”
- Dimensions: 7.9 x 5.6 x 1.6 in. (200 x 142 x 40 mm)
- Transfer Method: Store and Forward
- Mac Address Table: 1K
- Additional Features: “Green Technology, saving power up to70%
802.3X Flow Control, Back Pressure
Auto-Uplink Every Port” - Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing” - Package Contents: 16-Port 10/10Mbps Desktop Switch TL-SF1016D
Power Adapter
User Guide - Package Type: Retail
- Package Weight: 0.6900 kg
- Warranty: 3 Years
- #Hide#POE: No
29 in stock
TP-LINK (TL-SF1016D) 16-Port 10/100Mbps Unmanaged Desktop Switch, Plastic Case
£23.22 Add to basketQuick View -
£34.84Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): 16 x 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3x”
- Switching Capacity: 3.2Gbps
- Power Supply: “100-240VAC, 50/60Hz”
- Dimensions: 440 x 180 x 44 mm
- Transfer Method: Store and Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 2.38Mpps
- Additional Features: See Overview
- Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing” - Package Contents: 16-Port 10/100Mbps Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.4400 kg
- Warranty: 3 Years
- #Hide#POE: No
6 in stock
TP-LINK (TL-SF1016) 16-Port 10/100Mbps Unmanaged Rackmount Switch, 19-inch Steel Case
£34.84 Add to basketQuick View -
£47.90Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 9
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): 9 x 10/100 Mbps RJ45 (8x 802.3af/at PoE+)
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Ports 1–8
Power Supply: 65 W - Switching Capacity: 1.8 Gbps
- Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
- Dimensions: 171 x 98 x 27 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 1.3392 Mpps
- Jumbo Frame: 2 KB
- Additional Features: “Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
Priority Mode Button (Ports 1–2)
Isolation Mode Button (Ports 1–8)
Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission” - Security: Physical Security Lock
- Environment: Operating Temperature: 0–40C (32–104F)
Storage Temperature: -40–70C (-40–158F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SF1009P
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.9950 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
7 in stock
TP-LINK (TL-SF1009P) 9-Port 10/100 Unmanaged Desktop Switch, 8 Port PoE+, Steel Case
£47.90 Add to basketQuick View -
£43.55Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): 8 x 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 66 W - Switching Capacity: 1.6 Gbps
- Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
- Dimensions: 6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 1.1904 Mpps
- Jumbo Frame: 2 KB
- Additional Features: See Overview
- Security: Physical Security Lock
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SF1008P
Power Adapter
User Guide - Package Type: Retail
- Package Weight: 1.0800 kg
- Warranty: Lifetime Warranty
- #Hide#POE: Yes
22 in stock
TP-LINK (TL-SF1008P) 8-Port 10/100Mbps Unmanaged Desktop Switch, 4-Port PoE+, Steel Case
£43.55 Add to basketQuick View -
£10.30Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): “8 x 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX”
- Power Supply: External Power Adapter (Output: 5 VDC / 0.6 A)
- Dimensions: 5.3 x 3.1 x 0.9 in. (134.5 x 79 x 22.5mm)
- Transfer Method: Store and Forward
- Additional Features: “Green Technology, 802.3x Flow Control “
- Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing” - Package Contents: 8-Port 10/100Mbps Desktop Switch
Power Adapter
User Guide - Package Type: Retail
- Package Weight: 0.3800 kg
- Warranty: 3 Years
- #Hide#POE: No
88 in stock
TP-LINK (TL-SF1008D V12) 8-Port 10/100 Unmanaged Desktop Switch, Plastic Case
£10.30 Add to basketQuick View -
£39.19Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 6
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): 6 x 10/100 Mbps RJ45 Ports (ports 1-4 support 802.3af/at PoE+)
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
Power Supply: 64W - Standards and Protocols: 802.3 af/at compliant
- Switching Capacity: 1.2 Gbps
- Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
- Dimensions: 158 x 101 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 0.8928 Mpps
- Jumbo Frame: 2 KB
- Additional Features: Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1-4)
Priority Mode Button (Ports 1-2)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode - Security: Physical Security Lock
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing - Package Contents: TL-SF1006P
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.8800 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
42 in stock
TP-LINK (TL-SF1006P) 6-Port 10/100 Unmanaged Desktop Switch, 4 Port PoE+, Steel Case
£39.19 Add to basketQuick View -
£31.06Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): 5 x 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
Power Supply: 58W - Standards and Protocols: 802.3 af compliant
- Switching Capacity: 1Gbps
- Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
- Dimensions: 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Additional Features: Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing - Package Contents: “TL-SF1005P,
Power Adapter
User Guide” - Package Type: Retail
- Package Weight: 0.9000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
68 in stock
TP-LINK (TL-SF1005P) 5-Port 10/100 Unmanaged Desktop Switch, 4 Port PoE, Steel Case
£31.06 Add to basketQuick View -
£29.04Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): 5 X 10/100 Mbps RJ45 (1 – 4 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af compliant
PoE Ports: Ports 1–4
Power Supply: 41 W - Switching Capacity: 1 Gbps
- Power Supply: “External Power Adapter (Output: 53.5 V DC / 0.81 A)
Consumption:
1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)” - Dimensions: 100 x 98 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 0.744 Mpps
- Jumbo Frame: 2 KB
- Additional Features: Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode - Security: Physical Security Lock
- Environment: Operating Temperature: 0–40C (32–104F)
Storage Temperature: -40–70C (-40–158F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SF1005LP
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.7500 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
125 in stock
TP-LINK (TL-SF1005LP) 5-Port 10/100 Unmanaged Desktop Switch, 4-Port PoE, Intelligent Power, Steel Case
£29.04 Add to basketQuick View -
£8.28Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): 5 x 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - Power Supply: External Power Adapter (Output: 5.0VDC / 0.6A)
- Dimensions: 4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm)
- Transfer Method: Store and Forward
- Additional Features: “Green Technology, saving power up to 60%
802.3X Flow Control, Back Pressure
Auto-Uplink Every Port” - Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing” - Package Contents: 5-Port 10/100Mbps Desktop Switch
Power Adapter
User Guide - Package Type: Retail
- Package Weight: 0.2700 kg
- Warranty: 3 Years
- #Hide#POE: No
180 in stock
TP-LINK (TL-SF1005D V16) 5-Port 10/100Mbps Unmanaged Desktop Switch, Plastic Case
£8.28 Add to basketQuick View -
£3,774.20Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 26
- #Hide#Max SFP Transfer Rate: 25G SFP
- Interface(s): 6 x 10/25G SFP28 Slots
26 x 1/10G SFP+ Slots
2 x USB 3.0 Ports
1 x RJ45 Console Port
1 x USB Type C Console Port
1 x RJ45 Management Port - Bandwidth: Stack Bandwidth: Up to 300 Gbps (6 stack ports)
- Switching Capacity: 820 Gbps
- Power Supply: “Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)
*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.”
- Dimensions: 440 x 380 x 44 mm
- Mac Address Table: 128 K
- Packet Forwarding Rate: 610.1 Mpps
- Jumbo Frame: 9KB
- Additional Features: Automatic Device Discovery
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot ScheduleISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow
PPPoE ID Insertion - Quality of Service: Class of Service
Bandwidth Control
User-Defined OUI
Smoother Performance
Action for Flows - Layer Features: “L3:
IP Interfaces: IPv4: Max 256, IPv6: Max 256
Static Routing: IPv4: Max 2,048, IPv6: Max 1,024
Host Route Table: Max 15,300 entries
RIP: Version v1/v2, Max 102,400
OSPF: Version v2/v3;
VRRP: Version v2/v3, Max 64 groups
ECMP: 256 entries, max 32 ECMP Nexhops per Destination
Static ARP – 1,024 static entries
Dynamic ARP – 24,576 dynamic entries
Proxy ARP
DHCP Server
DHCP Relay“
- .: “L2 and L2+:
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Supports 4,093 IGMP groups
ERPS: Up to 64 ERPS rings
Mirroring
RSPAN
Mac Address
Virtual MAC (only supported in standalone mode)” - VLAN: “VLAN Group (802.1q VLAN)
802.1Q Tagged VLAN
MAC VLAN entries: 200
Multicast VLAN
Management VLAN
VLAN VPN (QinQ): Max 256 entries
GVRP
Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
VLAN VPN
Voice VLAN
Private VLAN” - Security: Port Isolation
CPU-Deffend
ARP Inspection (Dynamic ARP Inspection)
DoS Defend
IP-MAC-Port Binding
IPv6-MAC
DHCP Filter
Static/Dynamic Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
802.1X
AAA (including TACACS+)
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv2
IP/Port/MAC based access control - Management: “ Omada App, Centralized Management & Cloud Access :
Requires Omada Hardware, Cloud-Based or Software ControllerZero-Touch Provisioning :
Requires Omada Cloud-Based Controller“
- .: “ Management Features :
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log” - Environment: “Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 metersStorage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing” - Package Contents: SX6632YF Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 10.1100 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
Out of stock
TP-LINK (SX6632YF) Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots, USB
£3,774.20 Read moreQuick View -
£1,665.00Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 32
- Max RJ45 Transfer Rate: 10 Gbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 24 x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports
8 x 1/10G SFP+ Slots‡
1 x RJ45 Console Port
1 x USB Type C Console Port - PoE Ports (RJ45): “Standard: 802.3bt/at/af compliant
PoE++ Ports (802.3bt/at/af PoE): 24 Ports, up to 90 W per port**
Power Budget: 770 W**PoE budget calculations are based on laboratory testing
**SX3832MPP is incompatible with Passive PoE and other non-standard PoE devices
“ - Switching Capacity: 640 Gbps
- Power Supply: “100-240 V AC~50/60 Hz
Max Power Consumption:
1,010.2 W (110V/60Hz with 770 W PD connected)
953.7 W (220V/50Hz with 770 W PD connected)” - Dimensions: (WxDxH) 440 x 330 x 44 mm
- Mac Address Table: 32 K
- Packet Forwarding Rate: 240 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot ScheduleISP Features:
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
PPPoE ID Insertion
ERPS
802.3ah Ethernet Link OAM
DDM - Quality of Service: “8 priority queues
802.1p CoS/DSCP priority
Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
Bandwidth Control: Port/Flow-based Rating Limiting
Smoother Performance
Action for Flows: QoS remark (802.1P Remark, DSCP Remark)” - Layer Features: “L2 and L2+:
128 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 48 IPv4/IPv6 Static Routes
Static ARP: 128 static entries
510 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring“
- .: “L2 Multicast:
Supports 4,000 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP Authentication
Multicast VLAN Registration (MVR)
MLD Snooping
Multicast Filtering: 256 profiles and 16 entries per profile
“ - VLAN: “VLAN Group: Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 256 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 12
Private VLAN
GVRP
VLAN VPN: VLAN Mapping, VLAN Replace
Voice VLAN” - Access Control: “Time-based ACL
MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
Combined ACL
Packet Content ACL
IPv6 ACL
Policy: Mirroring, Redirect, Rate Limit, QoS Remark
ACL applies to Port/VLAN” - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
DHCP Filter
Static/Dynamic Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control - Management: “Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: -5–45°C
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: SX3832MPP Switch
Power Cord
Console Cable
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 7.0900 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (SX3832MPP) Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++, 8x 1/10 Gbps SFP+ Slots, Rackmountable
£1,665.00 Read moreQuick View -
£513.88Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 6
- Max RJ45 Transfer Rate: 10 Gbps
- Interface(s): 4 x 100/1000/2500/5000/10000 Mbps RJ45 Ports
2 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): “Standard: 802.3bt/at/af compliant
PoE+ Ports: 4 Ports, up to 60 W per port
Power Budget: 200 W” - Switching Capacity: 120 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
- Dimensions: (WxDxH) 294 x 180 x 44 mm
- Mac Address Table: 32 K
- Packet Forwarding Rate: 89.28 Mpps
- Jumbo Frame: 9 KB
- Additional Features: “Support Omada Hardware (OC200/OC300), Software & Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)” - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows - Layer Features: L2 and L2+:
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL2 Multicast:
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profileL3:
16 IPv4/IPv6 Interfaces
Static Routing
Static ARP
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay - VLAN: “VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 10 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
CLI through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: 0–50°C (32–122°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SX3206HPP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.6400 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (SX3206HPP) JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++, Rackmountable
£513.88 Read moreQuick View -
£508.06Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 16
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 16 x 10GE SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): –
- Switching Capacity: 320 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
Max Power Consumption: 32.74 W (220 V / 50 Hz)
- Dimensions: (WxDxH) 440 x 220 x 44 mm
- Mac Address Table: 32 K
- Packet Forwarding Rate: 238.08 Mpps
- Jumbo Frame: 9 KB
- Additional Features: “Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)
Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller” - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows - Layer Features: L2 and L2+ Features
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL2 Multicast
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profile - VLAN: “VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
Command Line Interface (CLI) through the console port, telnet” - Environment: “Operating Temperature: 0–45 °C (32–113 °F);
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing” - Package Contents: TL-SX3016F Switch
2 x Power Cords
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 4.0000 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
3 in stock
TP-LINK (SX3016F) JetStream 16-Port 10GE SFP+ L2+ Managed Switch, Centralized Management, Dual Redundant PSUs, Rackmountable
£508.06 Add to basketQuick View -
£217.74Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 8
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 8 x 10GE SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): –
- Switching Capacity: 160 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
Max Power Consumption: 15.46 W (220 V / 50 Hz) - Dimensions: (W x D x H) 440 x 180 x 44 mm
- Mac Address Table: 32 K
- Packet Forwarding Rate: 119.04 Mpps
- Jumbo Frame: 9 KB
- Additional Features: “Support Omada Hardware, Software & Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)” - Quality of Service: Advanced Quality of Service
- Layer Features: L2 and L2+ Features
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL2 Multicast
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles & 16 entries per profileLL3 Features
16 IPv4/IPv6 Interfaces
Static Routing
Static ARP
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay - VLAN: “VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 7 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management – HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
CLI through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: 0–45 °C (32–113 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.4000 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
5 in stock
TP-LINK (SX3008F) JetStream 8-Port 10GE SFP+ L2+ Managed Switch, Centralized Management, Fanless, Rackmountable
£217.74 Add to basketQuick View -
£195.97Description
Specification
- Rackmountable: Yes
- Managed: Smart
- Number of Ports: 28
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 24 x 10/100Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 x 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 x Combo Gigabit SFP Slots - PoE Ports (RJ45): Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 250W - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q,
IEEE 802.1p” - Switching Capacity: 12.8 Gbps
- Power Supply: “100~240VAC, 50/60Hz”
- Dimensions: (W x D x H) 440 x 180 x 44 mm
- Mac Address Table: 8k
- Packet Forwarding Rate: 9.5Mpps
- Jumbo Frame: 9216 Bytes
- Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Bandwidth Control
Smoother Performance
Storm Control - Layer Features: “Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)L2 Multicast
512 IPv4, IPv6 shared multicast groups
IGMP Snooping
MLD Snooping
Multicast VLAN Registration
Multicast Filtering” - VLAN: VLAN Group
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN - Access Control: P/Port/MAC
- Security: AAA
802.1X
EAP-TLS/EAP-TTLS/EAP-PEAP
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management (HTTPS with SSLv3/TLS1.0)
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
CLI through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
CPU Monitoring
Cable Diagnostics
EEE
System Log
802.1ab LLDP/ LLDP-MED” - Package Contents: T1500-28PCT
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.1000 kg
- Warranty: Limited lifetime
- #Hide#POE: Yes
71 in stock
TP-LINK (SL2428P) 24-Port Smart PoE Switch, 24 x 10/100Mbps PoE+ 4-Port Gigabit, 2 Combo GB SFP Slots, Rackmountable
£195.97 Add to basketQuick View -
£2,366.13Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 48
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 48 x 10/100/1000 Mbps RJ45 Ports
6 x 10G SFP+ Slots
2 x USB 2.0 Ports
1 x RJ45 Console Port
1 x USB Type-C Console Port
1 x RJ45 Management Port - PoE Ports (RJ45): “Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports, up to 30 W per port
PoE Power Budget: up to 1440 W**The total PoE budget varies with the power supply modules.”
- Bandwidth: Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
- Switching Capacity: 216 Gbps per Unit
- Power Supply: “Two Field-replaceable and Hot-swappable Power Supply Modules (100–240 VAC, 50/60 Hz)”
- Dimensions: 440 x 420 x 44 mm
- Mac Address Table: 32 K
- Packet Forwarding Rate: 160.7 Mpps
- Jumbo Frame: 9KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot ScheduleISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow - Quality of Service: Class of Service
Bandwidth Control
Voice VLAN
User-Defined OUI
Smoother Performance
Action for Flows - Layer Features: “L3:
IP Interfaces: IPv4: Max 256, IPv6: Max 256
Static Routing
Host Route Table
RIP
OSPF
VRRP
ECMP
Static ARP
Dynamic ARP
Proxy ARP
DHCP Server
DHCP RelayL2 and L2+:
Link Aggregation
Spanning Tree Protocol
Port-based and VLAN-based Loopback Detection
802.3x Flow Control
Supports 2,048 IGMP groups
ERPS
Mirroring
RSPAN
MAC Address Table
PIM-DM (IPv4)
Multicast” - VLAN: “Max 4K VLAN Group (802.1q VLAN)
802.1Q Tagged VLAN
MAC VLAN Entries: 200
Multicast VLAN
Management VLAN
VLAN VPN (QinQ): Max 256 entries
GVRP
Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
VLAN VPN
Voice VLAN
Private VLAN” - Security: Port Isolation
CPU-Defend
ARP Inspection (Dynamic ARP Inspection)
DoS Defend
IP-MAC-Port Binding
IPv6-MAC
DHCP Filter
Static/Dynamic Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
802.1X
AAA (including TACACS+)
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv2
IP/Port/MAC-based access control - Management: “ Omada App, Centralized Management & Cloud Access :
Requires Omada Hardware, Cloud-Based or Software ControllerZero-Touch Provisioning :
Requires Omada Cloud-Based Controller“
- .: “ Management Features :
Web-based GUI
CLI through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log
EEE” - Environment: Operating Temperature:0°C to 45 °C
Storage Temperature: -40 °C to 70 °C
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: SG6654XHP Switch
Power Cord
RJ45 Console Cable
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 12.1000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (SG6654XHP) Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6x 10G SFP+ Slots, USB
£2,366.13 Read moreQuick View -
£1,647.58Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 48
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 48 x 10/100/1000 Mbps RJ45 Ports
6 x 10G SFP+ Slots
2 x USB 2.0 Ports
1 x RJ45 Console Port
1 x USB Type-C Console Port
1 x RJ45 Management Port - PoE Ports (RJ45): –
- Bandwidth: Stack Bandwidth: Up to 120 Gbps (6 stack ports)
- Switching Capacity: 216 Gbps per Unit
- Power Supply: “Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)”
- Dimensions: 440 x 380 x 44 mm
- Mac Address Table: 32 K
- Packet Forwarding Rate: 160.7 Mpps
- Jumbo Frame: 9KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot ScheduleISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow - Quality of Service: Class of Service
Bandwidth Control
Voice VLAN
User-Defined OUI
Smoother Performance
Action for Flows - Layer Features: “L3:
IP Interfaces: IPv4: Max 256, IPv6: Max 256
Static Routing
Host Route Table
RIP
OSPF
VRRP
ECMP
Static ARP
Dynamic ARP
Proxy ARP
DHCP Server
DHCP RelayL2 and L2+:
Link Aggregation
Spanning Tree Protocol
Port-based and VLAN-based Loopback Detection
802.3x Flow Control
Supports 2,048 IGMP groups
ERPS
Mirroring
RSPAN
MAC Address Table
PIM-DM (IPv4)
Multicast” - VLAN: “Max 4K VLAN Group (802.1q VLAN)
802.1Q Tagged VLAN
MAC VLAN Entries: 200
Multicast VLAN
Management VLAN
VLAN VPN (QinQ): Max 256 entries
GVRP
Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
VLAN VPN
Voice VLAN
Private VLAN” - Security: Port Isolation
CPU-Defend
ARP Inspection (Dynamic ARP Inspection)
DoS Defend
IP-MAC-Port Binding
IPv6-MAC
DHCP Filter
Static/Dynamic Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
802.1X
AAA (including TACACS+)
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv2
IP/Port/MAC-based access control - Management: “ Omada App, Centralized Management & Cloud Access :
Requires Omada Hardware, Cloud-Based or Software ControllerZero-Touch Provisioning :
Reques Omada Cloud-Based Controller“
- .: “ Management Features :
Web-based GUI
CLI through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log
EEE” - Environment: “Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 metersStorage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing” - Package Contents: SG6654X Switch
2x Power Cords
RJ45 Console Cable
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 9.0100 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
Out of stock
TP-LINK (SG6654X) Omada 48-Port Gigabit Stackable L3 Managed Switch with 6x 10G SFP+ Slots, USB
£1,647.58 Read moreQuick View -
£1,850.81Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 24
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 24 x 10/100/1000 Mbps PoE+ RJ45 Ports
4 x 10G SFP+ Slots
2 x USB 2.0 Ports
1 x RJ45 Console Port
1 x USB Type-C Console Port
1 x RJ45 Management Port - PoE Ports (RJ45): “Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports, up to 30 W per port
PoE Power Budget: up to 720 W**The total PoE budget varies with the power supply modules.
“ - Bandwidth: Stack Bandwidth: Up to 80 Gbps (4 stack ports)
- Switching Capacity: 128 Gbps per Unit
- Power Supply: “Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)
**Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
“ - Dimensions: 440 x 420 x 44 mm
- Mac Address Table: 32 K
- Packet Forwarding Rate: 95.2 Mpps
- Jumbo Frame: 9KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot ScheduleISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow - Quality of Service: Class of Service
Bandwidth Control
Voice VLAN
User-Defined OUI
Smoother Performance
Action for Flows - Layer Features: “L3:
IP Interfaces
Static Routing
Host Route Table: Max 6,100 entries
RIP: Version v1/v2, Max 8,190
OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
VRRP: Version v2/v3, Max 64 groups
ECMP: 256 entries, max 32 ECMP Nexthops per Destination
Static ARP: 512 static entries
Dynamic ARP: 7,680 dynamic entries
Proxy ARP
DHCP Server
DHCP Relay“
- .: “L2 and L2+:
Link Aggregation
Spanning Tree Protocol
Port-based and VLAN-based Loopback Detection
802.3x Flow Control
Supports 2,048 IGMP groups
ERPS
Mirroring
RSPAN
MAC Address Table
PIM-DM (IPv4)
Multicast” - VLAN: “Max 4K VLAN Group (802.1q VLAN)
802.1Q Tagged VLAN
MAC VLAN Entries: 200
Multicast VLAN
Management VLAN
VLAN VPN (QinQ): Max 256 entries
GVRP
Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
VLAN VPN
Voice VLAN
Private VLAN” - Security: Port Isolation
CPU-Defend
ARP Inspection (Dynamic ARP Inspection)
DoS Defend
IP-MAC-Port Binding
IPv6-MAC
DHCP Filter
Static/Dynamic Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
802.1X
AAA (including TACACS+)
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv2
IP/Port/MAC-based access control - Management: “ Omada App, Centralized Management & Cloud Access :
Requires Omada Hardware, Cloud-Based or Software ControllerZero-Touch Provisioning :
Requires Omada Cloud-Based Controller“
- .: “ Management Features :
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log
EEE
“ - Environment: “Operating Temperature:
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 metersStorage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing” - Package Contents: SG6428XHP Switch
Power Cord
RJ45 Console Cable
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 11.3200 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (SG6428XHP) Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots, USB
£1,850.81 Read moreQuick View -
£1,233.87Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 24
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 24 x 10/100/1000 Mbps RJ45 Ports
4 x 10G SFP+ Slots
2 x USB 2.0 Ports
1 x RJ45 Console Port
1 x USB Type-C Console Port
1 x RJ45 Management Port - PoE Ports (RJ45): –
- Bandwidth: Stack Bandwidth: Up to 80 Gbps (4 stack ports)
- Switching Capacity: 128 Gbps per Unit
- Power Supply: “Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)”
- Dimensions: 440 x 380 x 44 mm
- Mac Address Table: 32 K
- Packet Forwarding Rate: 95.2 Mpps
- Jumbo Frame: 9KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot ScheduleISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow - Quality of Service: Class of Service
Bandwidth Control
Voice VLAN
User-Defined OUI
Smoother Performance
Action for Flows - Layer Features: “L3:
IP Interfaces: IPv4: Max 256, IPv6: Max 256
Static Routing
Host Route Table
RIP
OSPF
VRRP
ECMP
Static ARP
Dynamic ARP
Proxy ARP
DHCP Server
DHCP RelayL2 and L2+:
Link Aggregation
Spanning Tree Protocol
Port-based and VLAN-based Loopback Detection
802.3x Flow Control
Supports 2,048 IGMP groups
ERPS
Mirroring
RSPAN
MAC Address Table
PIM-DM (IPv4)
Multicast” - VLAN: “Max 4K VLAN Group (802.1q VLAN)
802.1Q Tagged VLAN
MAC VLAN Entries: 200
Multicast VLAN
Management VLAN
VLAN VPN (QinQ): Max 256 entries
GVRP
Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
VLAN VPN
Voice VLAN
Private VLAN” - Security: Port Isolation
CPU-Defend
ARP Inspection (Dynamic ARP Inspection)
DoS Defend
IP-MAC-Port Binding
IPv6-MAC
DHCP Filter
Static/Dynamic Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
802.1X
AAA (including TACACS+)
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv2
IP/Port/MAC-based access control - Management: “ Omada App, Centralized Management & Cloud Access :
Requires Omada Hardware, Cloud-Based or Software ControllerZero-Touch Provisioning :
Reques Omada Cloud-Based Controller“
- .: “ Management Features :
Web-based GUI
CLI through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log
EEE” - Environment: “Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 metersStorage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing” - Package Contents: SG6428X Switch
2x Power Cords
RJ45 Console Cable
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 8.5800 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
Out of stock
TP-LINK (SG6428X) Omada 24-Port Gigabit Stackable L3 Managed Switch with 4x 10G SFP+ Slots, USB
£1,233.87 Read moreQuick View -
£1,110.48Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 48
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): “48 x 10/100/1000 Mbps RJ45 Ports (8x PoE++, 40× PoE+)
4 x 1/10 Gbps SFP+ Slots
1 x USB 2.0 Port
1 x RJ45 Console Port
1 x USB Type-C Console Port” - PoE Ports (RJ45): Standard: 802.3af/at/bt compliant
PoE++ Ports: Ports 1~8 (up to 90W per Port)
PoE+ Ports: Ports 9~48 (up to 30W per Port)
Power Budget: 770W
Fast PoE
Perpetual PoE - Switching Capacity: 176 Gbps per Unit
- Power Supply: 100-240 V~ 50/60 Hz
Max. Power Consumption:
893.6 W (220V/50Hz) ( with 770 W PD connected @ 25 °C)
942.7 W (110V/60Hz) ( with 770 W PD connected @ 25 °C) - Dimensions: (WxDxH) 440 x 330 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 130.94 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot ScheduleISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow - Quality of Service: Class of Service
Bandwidth Control
Voice VLAN
User-Defined OUI
Smoother Performance
Action for Flows - Layer Features: “L3 Features:
IPv4: Max 128, IPv6: Max 128
Static Routing
Host Route Table: Max 1,024 entries
RIP: Version v1/v2, Max 1,796
OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450
Static ARP: 512 static entries
Dynamic ARP: 2,000 dynamic entries
Proxy ARP
DHCP Server
DHCP Relay“
- .: L2 and L2+ Features:
Link Aggregation
Spanning Tree Protocol
Port-based and VLAN-based Loopback Detection
802.3x Flow Control
ERPS
Mirroring
RSPAN
MAC Address Table
Multicast - VLAN: “Max 4K VLAN Group (802.1q VLAN)
802.1Q Tagged VLAN
MAC VLAN Entries: 60
Multicast VLAN
Management VLAN
VLAN VPN (QinQ): Max 256 entries
GVRP
Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
Voice VLAN
Private VLAN” - Security: Port Isolation
CPU-Defend
ARP Inspection (Dynamic ARP Inspection)
DoS Defend
IP-MAC-Port Binding
IPv6-MAC
DHCP Filter
Static/Dynamic Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
802.1X
AAA (including TACACS+)
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv2
IP/Port/MAC-based access control - Management: “Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log
IEEE 802.3az Energy Efficient Ethernet (EEE)” - Environment: Operating Temperature: -5–40°C
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: SG5452XMPP Switch
Power Cord
Console Cable
Rackmount Kits
Rubber Feet
Quick Installation Guide - Package Type: Retail
- Package Weight: 6.8700 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (SG5452XMPP) Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4x 10G Slots, Rackmountable
£1,110.48 Read moreQuick View -
£725.80Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 48
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 48 x 10/100/1000 Mbps RJ45 PoE+ Ports
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): “Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports, up to 30 W per port
Power Budget: 500 W” - Switching Capacity: 176 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
Consumption:
49.19 W (110V/60Hz) (no PD device connected)
635.7 W (110V/60Hz) (with 500 W PD device connected) - Dimensions: (WxDxH) 440 x 330 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 130.9 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Contro
Smoother Performance
Action for Flows - Layer Features: L2 and L2+ Features
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL2 Multicast
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profile - VLAN: “VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG3452XP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 6.6000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (SG3452XP) JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+, Rackmountable
£725.80 Read moreQuick View -
£900.00Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 48
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): “48 x 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+)
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port” - PoE Ports (RJ45): Standard: 802.3at/af/bt compliant
PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port)
PoE+ Ports: Ports 9~48 (up to 30 W PoE Output per Port)
Power Budget: 750 W - Switching Capacity: 176 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
Max Power Consumption: 913.4 W (110V/60Hz) ( with 750 W PD connected) - Dimensions: (WxDxH) 440 x 330 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 130.9 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot ScheduleISP Features:
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
PPPoE ID Insertion
ERPS
802.3ah Ethernet Link OAM
DDM
sFlow - Quality of Service: “8 priority queues
802.1p CoS/DSCP priority
Bandwidth Control: Port/Flow-based Rating Limiting
Smoother Performance
Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR” - Layer Features: “L2 and L2+ Features
128 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 48 IPv4/IPv6 Static Routes
Static ARP: 128 static entries
512 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring“
- .: “L2 Multicast
Supports 1000 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP Authentication
Multicast VLAN Registration (MVR)
MLD Snooping
Multicast Filtering: 256 profiles and 16 entries per profile” - VLAN: “VLAN Group: Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN: VLAN Mapping, VLAN Replace
Voice VLAN” - Access Control: “Time-based ACL
MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
Combined ACL
Packet Content ACL
IPv6 ACL
Policy: Mirroring, Redirect, Rate Limit, QoS Remark
ACL applies to Port/VLAN” - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
DHCP Filter
Static/Dynamic Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control - Management: “Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
CLI through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: SG3452XMPP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 6.9000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
5 in stock
TP-LINK (SG3452XMPP) Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++, Rackmountable
£900.00 Add to basketQuick View -
£431.12Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 48
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 48 x 10/100/1000 Mbps RJ45 Ports
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - Switching Capacity: 176 Gbps
- Power Supply: Power Supply
100-240 V AC~50/60 HzMax Power Consumption
32.72 W (110V/60Hz) - Dimensions: (WxDxH) 440 x 220 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 130.9 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Supports Omada Hardware/Software/Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning) - Quality of Service: L2/L3/L4 QoS
- Layer Features: “L2 and L2+ Features
Link Aggregation
Static link aggregation
802.3ad LACP
Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection
Port based
VLAN based
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both” - VLAN: “VLAN Group
Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Port-Based QinQ
Selective QinQ
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
Source MAC
Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
Fragment
IP Protocol
TCP Flag
TCP/UDP Port
DSCP/IP TOS
User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
Mirroring
Redirect
Rate Limit
QoS Remark
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: “Operating Temperature: 0–45°C (32–113°F);
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing” - Package Contents: TL-SG3452X Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.9500 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
Out of stock
TP-LINK (SG3452X) JetStream 48-Port Gigabit L2+ Managed Switch with 10GE 4 SFP+ Slots, L2/L3/L4 QoS, Fanless, Rackmountable
£431.12 Read moreQuick View -
£534.20Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 52
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 48 x 10/100/1000 Mbps RJ45 Ports
4 x Gigabit SFP Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): “Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports, up to 30 W per port
Power Budget: 384 W” - Switching Capacity: 104 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
Power Consumption:
52.53 W (110 V/60 Hz) (no PD connected)
485.4 W (110 V/60 Hz) (with 384 W PD connected) - Dimensions: 440 x 330 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 77.4 Mpps
- Jumbo Frame: 9 KB
- Additional Features: “Support Omada Hardware, Software, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)” - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows - Layer Features: L2 and L2+
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL3
16 IPv4/IPv6 Interfaces
Static Routing
Static ARP
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay - VLAN: “VLAN Group
802.1q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Template 16, VLAN 16
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
IP/Port/MAC based access control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management – HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2 - Management: “Web-based GUI
CLI through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: “Operating Temperature: 0C~45C (32F~113F);
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing” - Package Contents: TL-SG3452P Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 7.0000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
21 in stock
TP-LINK (SG3452P) JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+, 4 SFP Slots, Rackmountable
£534.20 Add to basketQuick View -
£326.62Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 48
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 48 x 10/100/1000Mbps RJ45 (Auto Negotiation/MDI/MDIX)
4 x 1000Mbps SFP Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): –
- Bandwidth: 104Gbps
- Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p” - Power Supply: “100~240VAC, 50/60Hz
Max Power Consumption: 33.52W (220V/50Hz)” - Dimensions: 440 x 220 x 44 mm
- Mac Address Table: 16k
- Packet Forwarding Rate: 77.4Mpps
- Jumbo Frame: 9216 Bytes
- Additional Features: See Overview
- Quality of Service: L2/L3/L4 QoS and IGMP
- Layer Features: “L2 and L2+:
Static Routing. DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 agg. groups, 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
L2PT” - VLAN: Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based/Private VLAN
GARP/GVRP - Access Control: “L2~L4 package filtering based on source and destination MAC address,
IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based” - Security: IP-MAC-Port-VID Binding
AAA
802.1x and Radius Authentication
DoS Defend
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control - Management: “Web-based GUI and CLI management
SNMP v1/v2c/v3 (public & TP-LINK private MIBs)
RMON (1, 2, 3, 9 groups)
sFlow*
PPPoE Circuit ID
DHCP Relay
DHCP Server
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
Dual Image
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Password Recovery” - Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing” - Package Contents: JetStream 48-Port Switch – T2600G-52TS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.7000 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
6 in stock
TP-LINK (SG3452) JetStream 48-Port Gigabit L2 Managed Network Switch with 4 SFP Slots, L2/L3/L4 QoS, Fanless, Rackmountable
£326.62 Add to basketQuick View -
£667.74Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 24
- Max RJ45 Transfer Rate: 2.5 Gbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 24 x 2.5 Gbps RJ45 Ports
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): “Standard: 802.3bt/at/af compliant
PoE++ Ports(802.3bt PoE): 8 Ports, up to 60 W per port
PoE+ Ports(802.3at PoE): 16 Ports, up to 30 W per port
Power Budget: 500 W” - Switching Capacity: 200 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
- Dimensions: (WxDxH) 440 x 330 x 44 mm
- Mac Address Table: 32 K
- Packet Forwarding Rate: 148.80 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows - Layer Features: L2 and L2+:
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL2 Multicast:
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profileL3:
32 IPv4/IPv6 Interfaces
Static Routing
Static ARP
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay - VLAN: “VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 256 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG3428XPP-M2 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 6.1000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
5 in stock
TP-LINK (SG3428XPP-M2) JetStream 24-Port 2.5GBASE-T & 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++, Rackmountable
£667.74 Add to basketQuick View -
£580.65Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 24
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): “24 x 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+)
4 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port” - PoE Ports (RJ45): Standard: 802.3at/af/bt compliant
PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port)
PoE+ Ports: Ports 9~24 (up to 30 W PoE Output per Port)
Power Budget: 500 W - Switching Capacity: 128 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
Max Power Consumption: 605.5W (110V/60Hz) ( with 500W PD connected) - Dimensions: (WxDxH) 440 x 330 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 95.23 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot ScheduleISP Features:
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
PPPoE ID Insertion
ERPS
802.3ah Ethernet Link OAM
DDM
sFlow - Quality of Service: “8 priority queues
802.1p CoS/DSCP priority
Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
Bandwidth Control: Port/Flow-based Rating Limiting
Smoother Performance
Action for Flows: QoS remark (802.1P Remark, DSCP Remark)” - Layer Features: “L2 and L2+:
128 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 48 IPv4/IPv6 Static Routes
Static ARP: 128 static entries
512 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring“
- .: “L2 Multicast:
Supports 1000 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP Authentication
Multicast VLAN Registration (MVR)
MLD Snooping
Multicast Filtering: 256 profiles and 16 entries per profile” - VLAN: “VLAN Group: Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN: VLAN Mapping, VLAN Replace
Voice VLAN” - Access Control: “Time-based ACL
MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
Combined ACL
Packet Content ACL
IPv6 ACL
Policy: Mirroring, Redirect, Rate Limit, QoS Remark
ACL applies to Port/VLAN” - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
DHCP Filter
Static/Dynamic Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
CLI management with SSHv1/SSHv2
IP/Port/MAC-based access control - Management: “Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3 SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: SG3428XMPP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 6.2000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
3 in stock
TP-LINK (SG3428XMPP) Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ Rackmountable
£580.65 Add to basketQuick View -
£479.03Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 24
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 24 x 10/100/1000 Mbps RJ45 Ports
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): 24 x 802.3at/af-compliant PoE+ ports with a total power supply of 384 W
- Switching Capacity: 128 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
Consumption:
34.4 W (110V/60Hz) ( no PD device connected)
465.8 W (110V/60Hz) ( with 384 W PD device connected) - Dimensions: 440 x 330 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 95.23 Mpps
- Jumbo Frame: 9 KB
- Additional Features: “Support Omada Hardware Controller, Software Controller, Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)” - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows - Layer Features: L2 and L2+ Features
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL2 Multicast
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profileL3 Features
16 IPv4/IPv6 Interfaces
Static Routing
Static ARP
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay - VLAN: “VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 7 Entries
Private VLAN
GVRP
VLAN VPN (QinQ)
Voice VLAN
Protocol VLAN: Protocol Template 16, Protocol VLAN 16″ - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management – HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
CLI through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: “Operating Temperature: 0C~45C (32F~113F);
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing” - Package Contents: TL-SG3428XMP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 6.2000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (SG3428XMP) JetStream 24-Port Gigabit & 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+, Rackmountable
£479.03 Read moreQuick View -
£492.10Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 24
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 20 x Gigabit SFP Ports
4 x Gigabit SFP/RJ45 Combo Ports
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): –
- Switching Capacity: 128 Gbps
- Power Supply: Dual Reduant Power Supplies
100-240 V AC~50/60 Hz - Dimensions: 440 x 220 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 95.23 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows - Layer Features: L2 and L2+ Features
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL2 Multicast
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profile - VLAN: “VLAN Group – Max 4K
802.1Q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Omada App*
Centralized Management*
Cloud Access**Requires OC300, OC200, Cloud-Based/Software Controller
Management Features:
Web-based GUI
Command Line Interface through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: “Operating Temperature: 0–45 °C (32–113 °F);
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing” - Package Contents: TL-SG3428XF Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 4.4500 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
3 in stock
TP-LINK (SG3428XF) JetStream 24-Port SFP L2+ Managed Switch w/ 4 10GE SFP+ Slots, Dual Redundant PSUs, Rackmountable
£492.10 Add to basketQuick View -
£348.38Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 24
- Max RJ45 Transfer Rate: 2.5 Gbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 24 x 2.5 Gbps RJ45 Ports
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): –
- Switching Capacity: 200 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
Max Power Consumption: 45.1 W (110V/60Hz) - Dimensions: (WxDxH) 440 x 180 x 44 mm
- Mac Address Table: 32 K
- Packet Forwarding Rate: 148.80 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows - Layer Features: L2 and L2+:
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL2 Multicast:
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profileL3:
32 IPv4/IPv6 Interfaces
Static Routing
Static ARP
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay - VLAN: “VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 256 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG3428X-M2 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.0500 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
Out of stock
TP-LINK (SG3428X-M2) JetStream 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots, Rackmountable
£348.38 Read moreQuick View -
£261.29Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 24
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 24 x 10/100/1000 Mbps RJ45 Ports
4 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): –
- Switching Capacity: 128 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
- Dimensions: 440 x 180 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: Forwarding
- Jumbo Frame: 95.23 Mpps
- Additional Features: Support Omada Hardware/Software/Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning) - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows - Layer Features: L2 and L2+:
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL3:
16 IPv4/IPv6 Interfaces
Static Routing
Static ARP
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay - VLAN: “VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 7 Entries
Protocol VLAN: Template 16, VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management – HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
CLI through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: “Operating Temperature: 0–45C (32–113F);
Storage Temperature: -40–70C (-40–158F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing” - Package Contents: TL-SG3428X Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.6690 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
6 in stock
TP-LINK (SG3428X) JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots, L2+/L3, Fanless, Rackmountable
£261.29 Add to basketQuick View -
£354.20Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 28
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 24 x 10/100/1000Mbps RJ45 Ports
4 x Gigabit SFP Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): “Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports, up to 30 W
Power Supply: 384 W” - Switching Capacity: 56 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
- Dimensions: 440 x 180 x 44 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 41.66 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Support Omada Hardware Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning) - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Port/Flow based Rating Limiting
Smoother Performance
Action for Flows - Layer Features: “Link Aggregation
Spanning Tree Protocol
Protect, Root Protect, Loop Protect
Loopback Detection
Flow Control
Mirroring
L2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP Authentication
MVR
MLD Snooping
Multicast Filtering” - VLAN: “VLAN Group
802.1q Tagged VLAN
MAC VLAN: 12 Entries
GVRP
VLAN VPN (QinQ)
Voice VLAN
Protocol VLAN: Protocol Template 16, Protocol VLAN 16″ - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
IP/Port/MAC based access control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2 - Management: “Web-based GUI
CLI through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: “Operating Temperature: 0C~45C (32F~113F);
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing” - Package Contents: Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 6.2000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (SG3428MP) JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+, 4 SFP Slots, Rackmountable
£354.20 Read moreQuick View -
£174.19Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 24
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 24 x 10/100/1000 Mbps RJ45 Ports
4 x Gigabit SFP Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): –
- Switching Capacity: 56 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
Max Power Consumption: 19.22 W (110 V/60 Hz) - Dimensions: 440 x 180 x 44 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 41.66 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Support Omada Hardware/Software/Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning) - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows - Layer Features: L2 and L2+:
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL3:
16 IPv4/IPv6 Interfaces
Static Routing
Static ARP
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay - VLAN: “VLAN Group
802.1q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
IP/Port/MAC based access control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management – HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2 - Management: “Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: 0–45C (32–113F)
Storage Temperature: -40–70C (-40–158F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG3428 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.6840 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
8 in stock
TP-LINK (SG3428) JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots, Console Port, Fanless, Rackmountable
£174.19 Add to basketQuick View -
£413.71Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 16
- Max RJ45 Transfer Rate: 2.5 Gbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 16 x 2.5 Gbps RJ45 Ports
2 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): “Standard: 802.3at/af compliant
PoE+ Ports(802.3at PoE): 8 Ports, up to 30 W per port
Power Budget: 240 W” - Switching Capacity: 120 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
Max Power Consumption: 299.4 W (110V/60Hz)(with 240 W PD connected) - Dimensions: (WxDxH) 440 x 180 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 89.28 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule - Quality of Service: “8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows: QoS remark (802.1P Remark, DSCP Remark)” - Layer Features: L3 Features
32 IPv4/IPv6 Interfaces
Static Routing
Static ARP
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 RelayL2 and L2+ Features
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring - .: L2 Multicast
IGMP Snooping
IGMP Authentication
MLD Snooping
MVR
Multicast Filtering: 256 profiles and 16 entries per profile - VLAN: “VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 256 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
CLI through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: 0–50°C (32–122°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: SG3218XP-M2 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.1900 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (SG3218XP-M2) Omada 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+, Rackmountable
£413.71 Read moreQuick View -
£348.38Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 8
- Max RJ45 Transfer Rate: 2.5 Gbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 8 x 100/1000/2500 Mbps RJ45 Ports
2 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port - PoE Ports (RJ45): Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
PoE Power Budget: 240 W - Switching Capacity: 80 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
- Dimensions: 440 x 180 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 59.52 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Support Omada Hardware/Software/Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning) - Quality of Service: 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
Bandwidth Control
Smoother Performance
Action for Flows - Layer Features: L2 and L2+:
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL3:
16 IPv4/IPv6 Interfaces
Static Routing
Static ARP
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay - VLAN: “VLAN Group
802.1Q Tagged VLAN
MAC VLAN: 7 Entries
Protocol VLAN: Template 16, VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management – HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
CLI through the console port, telnet
SNMP v1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: Operating Temperature: 0–50 °C
Storage Temperature: -40–70 °C
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG3210XHP-M2 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.3000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
7 in stock
TP-LINK (SG3210XHP-M2) JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+,Rackmountable
£348.38 Add to basketQuick View -
£508.06Description
Specification
- Rackmountable: Yes
- Managed: Smart
- Number of Ports: 52
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 32 x GB PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
16 x GB non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 x GB SFP Slots - PoE Ports (RJ45): Standard: 802.3at/af compliant
PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)
PoE Power Budget: 230 W - Switching Capacity: 104 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
- Dimensions: 440 x 330 x 44 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 77.37 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule - Quality of Service: “802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control: Port/Flow-based Rating Limit
Smoother Performance
Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control” - Layer Features: “L2 and L2+:
16 IP Interfaces
Static Routing
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
DLDP
802.1ab LLDP/ LLDP-MEDL2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
MVR
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)” - VLAN: VLAN Group: Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN - Access Control: Support up to 230 entries
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
ACL Rules Binding - Security: IP-MAC-Port Binding
AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control - Management: “ Omada App, Centralized Management & Cloud Access :
Requires Omada Hardware, Cloud-Based or Software ControllerZero-Touch Provisioning :
Requires Omada Cloud-Based Controller“
- .: “ Management Features :
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log” - Environment: Operating Temperature:0°C to 40 °C
Storage Temperature: -40 °C to 70 °C
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: SG2452LP
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 6.4700 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
4 in stock
TP-LINK (SG2452LP) Omada 52-Port Gigabit Smart Switch w/ 32-Port PoE+, Centralized Management, Rackmountable
£508.06 Add to basketQuick View -
£256.93Description
Specification
- Rackmountable: Yes
- Managed: Smart
- Number of Ports: 28
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 24 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 x Gigabit SFP Slots - PoE Ports (RJ45): Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W - Bandwidth: 56 Gbps
- Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x”
- Power Supply: PoE
Max Consumption:
32.1 W (110 V/ 60 Hz with no PD connected)
308.6 W (110 V/ 60 Hz with 250 W PD connected) - Dimensions: 440 x 220 x 44 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 41.7 Mpps
- Jumbo Frame: 9KB
- Additional Features: See Overview
- Quality of Service: “Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS
Voice VLAN” - Layer Features: “Static Routing
DHCP Relay
DHCP Server
IGMP Snooping V1/V2/V3
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)” - VLAN: Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN - Access Control: L2–L4 package filtering
MAC ACL
IP ACL
Combined ACL
IPv6 ACL - Security: AAA
Port Security
DHCP Snooping
IP-MAC-Port Binding
IPv6-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1.2
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend - Management: “Omada App
Omada Cloud-Based Controller
Centralized Management
Web-based GUI and CLI management
SNMP v1/v2c/v3 (public MIBs and TP-Link private MIBs)
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
EEE” - Environment: “Operating Temperature: 0–50C (32–122F);
Storage Temperature: -40–70C (-40–158F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing” - Package Contents: TL-SG2428P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 4.1000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
86 in stock
TP-LINK (SG2428P) JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+, 4 GB SFP Slots, Rackmountable
£256.93 Add to basketQuick View -
£241.69Description
Specification
- Rackmountable: Yes
- Managed: Smart
- Number of Ports: 28
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 16 x Gigabit PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
8 x Gigabit non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 x Gigabit SFP Slots - PoE Ports (RJ45): Standard: 802.3at/af compliant
PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
PoE Power Budget: 150 W - Switching Capacity: 56 Gbps
- Power Supply: “100-240V AC, 50/60Hz”
- Dimensions: 440 x 220 x 44 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 41.66 Mpps
- Jumbo Frame: 9KB
- Additional Features: Fanless design for quiet operation
Durable metal casing
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule - Quality of Service: “802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control: Port/Flow-based Rating Limit
Smoother Performance
Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control” - Layer Features: L2 and L2+:
16 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED - .: “L2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)” - VLAN: VLAN Group: Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN - Access Control: Support up to 230 entries
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
ACL Rules Binding - Security: IP-MAC-Port Binding
AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control - Management: “Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
CLI through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: SG2428LP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.9800 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
7 in stock
TP-LINK (SG2428LP) Omada 28-Port Gigabit Smart Switch with 16-Port PoE+, 4 GB SFP Slots, Rackmountable
£241.69 Add to basketQuick View -
£225.00Description
Specification
- Rackmountable: Yes
- Managed: Smart
- Number of Ports: 18
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 16 x 10/100/1000 Mbps RJ45 (Auto Negotiation/Auto MDI/MDIX)
2 x Gigabit SFP - PoE Ports (RJ45): PoE+ Ports: 16 Ports
PoE Power Budget: 150 W - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x”
- Switching Capacity: 36 Gbps
- Power Supply: “100-240V AC, 50/60Hz”
- Mac Address Table: 8K
- Packet Forwarding Rate: 26.78 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule - Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Storm Control - Layer Features: L2 and L2+:
16 IP Interfaces
Static Routing
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED - VLAN: VLAN Group
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN - Access Control: Support up to 230 entries
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation
Policy Action
ACL Rules Binding
Actions for flows - Security: AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Management Features
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log” - Environment: Operating Temperature: 0–50°C (32–122°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG2218P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 3.2000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
17 in stock
TP-LINK (SG2218P) JetStream 18-Port Gigabit Smart Switch w/ 16-Port PoE+, 2x SFP, IPv6, Centralised Management
£225.00 Add to basketQuick View -
£130.64Description
Specification
- Rackmountable: Yes
- Managed: Smart
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 16 x 10/100/1000 Mbps RJ45 Ports
2 x Gigabit SFP Slots - PoE Ports (RJ45): –
- Switching Capacity: 36 Gbps
- Power Supply: 100-240 V AC~50/60 Hz
Max Power Consumption: 12.3 W (220 V/50 Hz) - Dimensions: 440 x 180 x 44 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 26.8 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Support Omada Hardware/Software/Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning) - Quality of Service: L2/L3/L4 QoS and IGMP snooping
- Layer Features: L2 and L2+:
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
MirroringL3:
16 IPv4/IPv6 Interfaces
Static Routing
Static ARP
316 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP L2 Relay - VLAN: “VLAN Group
802.1q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN: Template 16, VLAN 16
GVRP
VLAN VPN (QinQ)
Voice VLAN” - Access Control: Time-based ACL
MAC ACL
IP ACL
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
ACL apply to Port/VLAN - Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
Static/Dynamic Port Security
Broadcast/Multicast/Unicast Storm Control
IP/Port/MAC based access control
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management – HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2 - Management: “Web-based GUI
CLI through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log” - Environment: “Operating Temperature: 0–40 C (32–104 F);
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing” - Package Contents: TL-SG2218 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.5320 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
Out of stock
TP-LINK (SG2218) JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots, L2/L3/L4 QoS, Fanless, Rackmountable
£130.64 Read moreQuick View -
£256.93Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 8
- Max RJ45 Transfer Rate: 2.5 Gbps
- #Hide#Max SFP Transfer Rate: 10G SFP
- Interface(s): 8 x 100/1000/2500 Mbps RJ45 PoE+ Ports
2 x 10G SFP+ Slots - PoE Ports (RJ45): Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
PoE Power Budget: 160 W - Switching Capacity: 80 Gbps
- Power Supply: 53.5VDC/3.37A Power Adapter
- Dimensions: 226 x 131 x 35 mm
- Mac Address Table: 16 K
- Packet Forwarding Rate: 59.52 Mpps
- Jumbo Frame: 9KB
- Additional Features: Fanless design for quiet operation
Desktop/Wall-Mounting
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule - Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Storm Control - Layer Features: L2 and L2+:
32 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED - .: “L2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)” - VLAN: VLAN Group – Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN - Access Control: Support up to 230 entries
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
ACL Rules Binding - Security: IP-MAC-Port Binding
AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
DHCP Filter
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
CLI through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: SG2210XHP-M2 Switch
Power Adapter
Quick Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 2.2600 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (SG2210XMP-M2) Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+
£256.93 Read moreQuick View -
£123.39Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 10
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 8 x 10/100/1000Mbps RJ45
2 x Gigabit SFP - PoE Ports (RJ45): “8, up to 30 W”
- Bandwidth: 20 Gbps
- Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x” - Switching Capacity: 16 Gbps
- Power Supply: 12 VDC/1 A External Adapter
or
Power from PoE Source - Dimensions: (WxDxH) 209 x 126 x 26 mm
- Transfer Method: Store and Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 14.88 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule - Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Queue Weight Config
Priority Schedule Mode
– SP (Strict Priority)
– WRR (Weighted Round Robin) - Layer Features: “L2+ Features:
16 IP Interfaces
Static Routing
DHCP Server
DHCP Relay
DHCP L2 RelayL2 Features:
Link Aggregation
Spanning Tree Protocol
Loopback DetectionL2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering” - VLAN: VLAN Group
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN - Access Control: Support up to 230 entries
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation
Policy Action
ACL Rules Binding
Actions for flows - Security: AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Omada App
Centralized Management (OC300/OC200/Omada Software Controller)
Cloud Access (OC300/OC200/Omada Software Controller)
Zero-Touch Provisioning
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration” - .: CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log - Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing” - Package Contents: TL-SG2210P
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 1.3100 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
23 in stock
TP-LINK (SG2210P) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 SFP Ports, Desktop/Wall Mount
£123.39 Add to basketQuick View -
£166.94Description
Specification
- Rackmountable: Yes
- Managed: Smart
- Number of Ports: 10
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: 2.5G SFP
- Interface(s): “8 x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
2 x 100/1000 Mbps SFP Slots” - PoE Ports (RJ45): Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 150 W - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p”
- Switching Capacity: 20 Gbps
- Power Supply: PoE
Max Consumption:
12.2 W (110 V / 60 Hz with no PD connected)
173.9 W (110 V / 60 Hz with 150 W PD connected) - Dimensions: 294 x 180 x 44 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 14.9 Mpps
- Jumbo Frame: 9 KB
- Additional Features: See Overview
- Quality of Service: 802.1p CoS/ DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Actions for flows
Storm Control - Layer Features: DHCP Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED - VLAN: VLAN Group
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN - Access Control: Support up to 230 entries
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation
Policy Action
ACL Rules Binding - Security: AAA
802.1X
IP/IPv6-MAC Binding
IP Source Gurad
IPv6 Source Gurad
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS1.2
Secure Command Line Interface management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Omada App
Centralized Management
Web-based GUI and CLI management
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
System Log
802.1ab LLDP/ LLDP-MED” - Environment: “Operating Temperature: 0C~40C (32F~104F);
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing” - Package Contents: TL-SG2210MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet - Package Type: Retail
- Package Weight: 2.1600 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
10 in stock
TP-LINK (SG2210MP) JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 2 GB SFP Slots, Rackmountable
£166.94 Add to basketQuick View -
£166.94Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 16
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 16 x 10/100/1000 Mbps RJ45 Ports
Auto-Negotiation/Auto MDI/MDIX - PoE Ports (RJ45): Ports 1–8 Support 802.3at/af PoE+
Power Supply: 120 W - Bandwidth: 16 Gbps
- Standards and Protocols: “IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x”
- Power Supply: External Power Adapter (Output: 53.5 VDC/ 1.31 A)
- Dimensions: 286 x 111.7 x 25.4 mm
- Mac Address Table: 8k
- Jumbo Frame: 9 KB
- Additional Features: See Overview
- Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Storm Control - Layer Features: “L2 and L2+:
DHCP Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MEDL2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
MLD Snooping
Limited IP Multicast (256 profiles and 16 entries per profile)” - VLAN: VLAN Group – Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN - Access Control: Support up to 230 entries
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation
Policy Action
ACL Rules Binding
Actions for flows - Security: AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC-based access control - Management: “Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch ProvisioningManagement Features:
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: TL-SG2016P
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 2.3000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
24 in stock
TP-LINK (SG2016P) JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+, Centralized Management
£166.94 Add to basketQuick View -
£87.10Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000 Mbps RJ45 Ports
Auto-Negotiation/Auto MDI/MDIX - PoE Ports (RJ45): Standard: 802.3af/at compliant
PoE Ports: 4 Ports
Power Supply: 62 W - Bandwidth: 16 Gbps
- Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x”
- Power Supply: External Power Adapter (Output: 53.5 VDC/ 1.31 A)
- Dimensions: 209 x 126 x 26 mm
- Mac Address Table: 8k
- Packet Forwarding Rate: 4.1 Mbit
- Jumbo Frame: 9 KB
- Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Storm Control - Layer Features: Click here for Layer Features
- VLAN: VLAN Group
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN - Access Control: Support up to 230 entries
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation
Policy Action
ACL Rules Binding
Actions for flows - Security: AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC-based access control - Management: “Omada App
Centralized Management
Cloud Access
Web-based GUI
CLI through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log” - Environment: “Operating Temperature: 0–40 C (32–104 F);
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing” - Package Contents: TL-SG2008P
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 1.2000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
13 in stock
TP-LINK (SG2008P) JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+, Centralized Management
£87.10 Add to basketQuick View -
£63.87Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): –
- Bandwidth: 16 Gbps
- Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x”
- Power Supply: 12 VDC/1 A External Adapter or
Obtain Power from PoE Source - Dimensions: 209 x 126 x 26 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 11.9 Mpps
- Jumbo Frame: 9 KB
- Additional Features: See Overview
- Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Storm Control - Layer Features: L2 and L2+:
16 IP Interfaces
Static Routing
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED - VLAN: VLAN Group
Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN - Security: AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management – HTTPS with SSLv3/TLS 1.2
Secure CLI management with SSHv1/SSHv2
IP/Port/MAC based access control - Management: “Web-based GUI
CLI through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log” - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG2008
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 0.9140 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
5 in stock
TP-LINK (SG2008) 8-Port Gigabit Easy Smart Managed Switch, Robust Security
£63.87 Add to basketQuick View -
£82.01Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 1 x Gigabit RJ45 PoE In (compliance with 802.3af/at/bt)
4 x Gigabit RJ45 PoE Out (compliance with 802.3af/at PoE) - PoE Ports (RJ45): “PoE In Port: Port 5, Compliance with 802.3af/at/bt
PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoEPoE Power Budget:
– 64 W when powered by 802.3bt Type 4 (90 W)
– 44 W when powered by 802.3bt Type 3 (60 W)
– 19 W when powered by 802.3at
– 6 W when powered by 802.3af” - Standards and Protocols: “IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x”
- Switching Capacity: 10 Gbps
- Power Supply: Obtain Power from 802.3af/at/bt PoE Source
Max Power Consumption: 71.5 W (when powered by 802.3bt Type 4 (90 W)) - Dimensions: (WxDxH) 100 x 38.5 x 170 mm
- Mac Address Table: 8k
- Packet Forwarding Rate: 7.44 Mpps
- Jumbo Frame: 9 KB
- Additional Features: Fanless
Wall or Pole Mount
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule - Quality of Service: 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Smoother Performance
Storm Control - Layer Features: L2 and L2+:
32 IP Interfaces
Static Routing
DHCP Server
DHCP Relay & DHCP L2 Relay
Static & Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED - .: “L2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
MLD Snooping
Limited IP Multicast (256 profiles & 16 entries per profile)” - VLAN: VLAN Group – Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN - Access Control: Support up to 230 entries
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation
Policy Action
ACL Rules Binding
Actions for flows - Security: AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
CLI management with SSHv1/SSHv2
IP/Port/MAC-based access control - Management: “Omada App, Centralized Management & Cloud Access:
Requires Omada Hardware, Cloud-Based or Software ControllerZero-Touch Provisioning:
Requires Omada Cloud-Based ControllerManagement Features:
CLI through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP” - Environment: Operating Temperature:0°C to 40 °C
Storage Temperature: -40 °C to 70 °C
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: SG2005P-PD
Mounting Kits
Installation Guide - Package Type: Retail
- Package Weight: 0.4900 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
14 in stock
TP-LINK (SG2005P-PD) Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out, Outdoor Weatherproof, Centralized Management
£82.01 Add to basketQuick View -
£30.48Description
Specification
- Rackmountable: No
- Managed: Yes
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 7 Passive PoE-in RJ45 Ports:
10/100/1000Mbps Auto-Negotiation
Voltage: 24/48 V (mixture is not supported)
Power pin of Ethernet cable: 4/5+ 7/8-1 Passive PoE-out RJ45 Port:
10/100/1000Mbps Auto-Negotiation
Voltage: depending on the input voltage of PoE-in ports
Power pin of Ethernet cable: 4/5+ 7/8-1 DC Output Port:
Voltage: 5/12 V - PoE Ports (RJ45): See above
- Standards and Protocols: “CSMA/CD
IEEE802.3ab, IEEE802.3i, IEEE802.3p
IEEE802.3q, IEEE802.3x, IEEE802.3u” - Switching Capacity: 16 Gbps
- LED: “Power, Link/Act LED”
- Dimensions: 158 x 99.1 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 4 K
- Packet Forwarding Rate: 11.9 Mbps
- Jumbo Frame: 16 KB
- Additional Features: See Overview
- Quality of Service: Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control - Layer Features: L2:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention - VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN - Management: Intelligent management via a web user interface and downloadable utility
- Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-RP108GE
Power Cord
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 0.4300 kg
- Warranty: 2 Years
- #Hide#POE: Yes
12 in stock
TP-LINK (RP108GE) 8-Port Gigabit Managed Reverse PoE Switch, 7 PoE Input & 1 PoE Output, DC Output, Metal Casing
£30.48 Add to basketQuick View -
£72.58Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 10
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 9 x 10/100/1000 Mbps RJ45
1 x Gigabit SFP Port - PoE Ports (RJ45): “Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1–8, up to 30 W PoE output per port
PoE Power Budget: 61W” - Switching Capacity: 20 Gbps
- Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
- Dimensions: 209 x 126 x 26 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 4K
- Packet Forwarding Rate: 14.88 Mpps
- Jumbo Frame: 16 KB
- Additional Features: “Extend Mode Button (Ports 1–4, Up to 250m PoE power & data transmission)
Isolation Mode Button (Ports 1–8)
PoE Auto Recovery Button (Ports 1–8)
Compatible With IEEE 802.3af/at Compliant PDs
IEEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Green Technology” - Security: Physical Security Lock
- Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: LS1210GP
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 1.2300 kg
- Warranty: 3 Years
- #Hide#POE: Yes
20 in stock
TP-LINK (LS1210GP) 10-Port Gigabit Desktop LiteWave Switch with 8-Port PoE+, GB SFP Port
£72.58 Add to basketQuick View -
£46.45Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000Mbps RJ45
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): “Standard: 802.3 af/at compliant
PoE Ports: Ports 1–8, up to 30 W PoE output per port
PoE Budget: 62 W” - Switching Capacity: 16 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
- Dimensions: (WxDxH) 158 x 99 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 4K
- Packet Forwarding Rate: 11.9 Mpps
- Jumbo Frame: 16 KB
- Additional Features: “Extend Mode Button (Ports 1–2, Up to 250m PoE power & data transmission)
PoE Auto Recovery Button (Ports 1-8)
Mac Address Auto-Learning and Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Green Technology” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: LS108GP
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.8950 kg
- Warranty: 3 Years
- #Hide#POE: Yes
Out of stock
TP-LINK (LS108GP) 8-Port Gigabit Desktop LiteWave Switch with 8-Port PoE+, Metal Casing
£46.45 Read moreQuick View -
£20.32Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000Mbps
Auto-Negotiation
Auto-MDI/MDIX Ports - Standards and Protocols: “IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p”
- LED: System Power
Link/Act indicators per port built into each RJ-45 port - Power Supply: External Power Adapter (Output: 9VDC / 0.6A)
Max Power Consumption: 3.7W(220V/50Hz) - Dimensions: 158 x 99.1x 25 mm
- Transfer Method: Store and Forward
- Mac Address Table: 4K
- Packet Forwarding Rate: 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide - Jumbo Frame: 16 KB
- Additional Features: Green Technology
802.3X Flow Control
802.1P/DSCP QoS - Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.4900 kg
- Warranty: 3 Years
- #Hide#POE: No
Out of stock
TP-LINK (LS108G) 8-Port Gigabit Unmanaged Desktop LiteWave Switch, Steel Case
£20.32 Read moreQuick View -
£41.38Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x10/100/1000Mbps RJ45
AUTO Negotiation
AUTO MDI/MDIX - PoE Ports (RJ45): “Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4, up to 30 W PoE output per port
Power Supply: 65 W” - Switching Capacity: 10 Gbps
- Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
- Dimensions: 99.8 x 98 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 7.44 Mpps
- Jumbo Frame: 16 KB
- Additional Features: “Extend Mode Button (Ports 1–2, Up to 250m PoE power & data transmission)
PoE Auto Recovery Button (Ports 1-4)
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning and Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Green Technology” - Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: LS105GP
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.7000 kg
- Warranty: 3 Years
- #Hide#POE: Yes
84 in stock
TP-LINK (LS105GP) 5-Port Gigabit Desktop LiteWave Switch with 4-Port PoE+, Metal Casing
£41.38 Add to basketQuick View -
£18.14Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000Mbps
Auto-Negotiation
Auto-MDI/MDIX Ports - PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p”
- LED: System Power
Link/Act indicators per port built into each RJ-45 port - Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
Max Power Consumption: 2.776W (220V/50Hz) - Dimensions: 99.8 x 98 x 25 mm
- Transfer Method: Store and Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 7.4 Mpps
- Jumbo Frame: 16 KB
- Additional Features: Green Technology
802.3X Flow Control
802.1P/DSCP QoS - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing - Package Type: Retail
- Package Weight: 0.3670 kg
- Warranty: 3 Years
- #Hide#POE: No
Out of stock
TP-LINK (LS105G) 5-Port Gigabit Unmanaged Desktop LiteWave Switch, Steel Case
£18.14 Read moreQuick View -
£14.51
Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): “8 x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports”
- PoE Ports (RJ45): –
- Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
- Switching Capacity: 16 Gbps
- Power Supply: External Power Adapter (Output: 9VDC / 0.6A)
- Dimensions: 127 x 66.5 x 23 mm
- Transfer Method: Store and Forward
- Mac Address Table: 4K
- Packet Forwarding Rate: 11.9 Mpps
- Jumbo Frame: 16 KB
- Additional Features: Green Technology
802.3X Flow Control
Back Pressure - Management: –
- Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.2300 kg
- Warranty: 3 Years
- #Hide#POE: No
40 in stock
TP-LINK (LS1008G) 8-Port Gigabit Unmanaged Desktop LiteWave Switch, Plastic Case
£14.51 Add to basketQuick View -
£10.17
Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): “5 x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports”
- PoE Ports (RJ45): –
- Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
- Switching Capacity: 10 Gbps
- Power Supply: External Power Adapter (Output: 5VDC/0.6A)
- Dimensions: 90 x 72 x 23 mm
- Transfer Method: Store and Forward
- Mac Address Table: 2K
- Packet Forwarding Rate: 7.4 Mpps
- Jumbo Frame: 16 KB
- Additional Features: Green Technology
802.3X Flow Control
Back Pressure - Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.1500 kg
- Warranty: 3 Years
- #Hide#POE: No
119 in stock
TP-LINK (LS1005G) 5-Port Gigabit Unmanaged Desktop LiteWave Switch, Green Technology, Plastic Case
£10.17 Add to basketQuick View -
£194.52Description
Specification
- Rackmountable: No
- Managed: Yes
- Number of Ports: 10
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 2 x 10/100/1000 Mbps PoE++ RJ45 Ports
6 x 10/100/1000 Mbps PoE+ RJ45 Ports
2 x Gigabit SFP/RJ45 Combo Slots
Auto-Negotiation/Auto MDI/MDIX - PoE Ports (RJ45): “Standard: 802.3af/at/bt compliant
PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port
PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per portPoE Budget:
– 60W (Input: 12V / 7.2A – 21V / 3.7A))
– 120W (Input: 21V / 6.7A – 46V / 3.1A)
– 240W (Input: 46V / 5.7A – 57V / 4.4A)” - Switching Capacity: 20 Gbps
- Power Supply: 12-57V 1+1 Redundant DC Power Input
- Dimensions: 155 x 120 x 60 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 14.88 Mpps
- Jumbo Frame: 15 KB
- Additional Features: Professional Industrial-Grade Design
Durable IP40 Aluminium Casing
Fanless
DIN-rail mounting
Wall mounting
Physical Security Lock
6kV Lighting Protection - Quality of Service: 802.1p DSCP Priority
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control - Layer Features: L2 Features:
Link Aggregation
Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDP
Spanning TreeL2 Multicast:
IGMP Snooping - VLAN: MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN - Management: “Omada App:
Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software ControllerCloud Access:
Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch Provisioning:
Requires Omada Cloud-Based Controller” - .:
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration - Environment: Operating Temperature: 0°C ~ 75°C
Storage Temperature: -40°C ~ 85°C
Operating Humidity: 5%~95% non-condensing
Storage Humidity: 5%~95% non-condensing - Package Contents: IES210GPP
DIN-Rail Mounting Bracket
Wall-Mounting Plates
Installation Guide - Package Type: Retail
- Package Weight: 1.4200 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (IES210GPP) Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++, 2x Combo RJ45/SFP, IP40 Aluminium Casing
£194.52 Read moreQuick View -
£281.61Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 28
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 24 x10/100/1000 Mbps PoE+ RJ45 (802.3af PoE and 802.3at PoE+)
2 x10/100/1000 Mbps RJ45
2 x Gigabit SFP
Auto-Negotiation/Auto MDI/MDIX - PoE Ports (RJ45): “Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 24 ports
PoE Budget: 384W available for all PoE+ ports, 30W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery
Up to 250m PoE transmission distance” - Switching Capacity: 56 Gbps
- Power Supply: “100–240V AC, 50/60Hz”
- Dimensions: 440 x 330 x 44 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 41.67 Mpps
Packet Buffer Memory: 4 Mbit - Jumbo Frame: 15 KB
- Additional Features: Durable Metal Casing
Fan Quantity: 2
Physical Security Lock
Surge Protection: 6kV
Supports plug-and-play - Quality of Service: Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control - Layer Features: L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
802.3x Flow Control
Mirroring
Port Statistics
802.1ab LLDPL2 Multicast:
IGMP Snooping - VLAN: MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN - Management: “Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software ControllerCloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller” - .:
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration - Environment: Operating Temperature: -5°C ~ 45°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: ES228GMP
Power Cord
Mounting Brackets
Rubber Feet
Screws
Installation Guide - Package Type: Retail
- Package Weight: 5.9200 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
4 in stock
TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountable
£281.61 Add to basketQuick View -
£217.74Description
Specification
- Rackmountable: Yes
- Managed: Yes
- Number of Ports: 20
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 16 x 10/100/1000 Mbps PoE+ RJ45 (support 802.3af PoE and 802.3at PoE+)
2 x 10/100/1000 Mbps RJ45
2 x Gigabit SFP
Auto-Negotiation/Auto MDI/MDIX - PoE Ports (RJ45): “Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 16 ports
PoE Budget: 250W available for all PoE+ ports, 30W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery
Up to 250m PoE transmission distance” - Switching Capacity: 40 Gbps
- Power Supply: “100-240V AC, 50/60Hz”
- Dimensions: 440 x 180 x 44 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 29.76 Mpps
Packet Buffer Memory: 4 Mbit - Jumbo Frame: 15 KB
- Additional Features: Durable Metal Casing
Fan Quantity: 2
Physical Security Lock
Surge Protection: 6kV
Supports plug-and-play - Quality of Service: Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control - Layer Features: L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDPL2 Multicast:
IGMP Snooping - VLAN: MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN - Management: “Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software ControllerCloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller” - .:
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration - Environment: Operating Temperature: -5°C ~ 50°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: ES220GMP
Power Cord
Mounting Brackets
Rubber Feet
Screws
Installation Guide - Package Type: Retail
- Package Weight: 3.0800 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
17 in stock
TP-LINK (ES220GMP) Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+, 2x GB SFP Ports, 250W Power Budget, Rackmountable
£217.74 Add to basketQuick View -
£102.78Description
Specification
- Rackmountable: No
- Managed: Yes
- Number of Ports: 10
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- #Hide#Max SFP Transfer Rate: GB SFP
- Interface(s): 8 x Gigabit PoE+ RJ45 (support 802.3at PoE+ and 802.3af PoE)
1 x Gigabit RJ45
1 x Gigabit SFP/RJ45 Combo
Auto-Negotiation/Auto MDI/MDIX - PoE Ports (RJ45): “Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 8 ports
PoE Budget: 123W available for all PoE+ ports, 30W max per port
PoE Auto Recovery
Up to 250m PoE transmission distance” - Switching Capacity: 20 Gbps
- Power Supply: DC Power Adapter (Output: 53.5 VDC/ 2.43 A)
- Dimensions: 209 x 126 x 26 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 14.88 Mpps
- Jumbo Frame: 15 KB
- Additional Features: Fanless
Durable metal casing
Desktop/wall mounting design
Physical security lock - Quality of Service: Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control - Layer Features: L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDPL2 Multicast:
IGMP Snooping - VLAN: MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN - Management: “Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software ControllerCloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller” - .:
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration - Environment: Operating Temperature: 0°C ~40°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: ES210GMP
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 1.5800 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (ES210GMP) Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+, SFP/RJ45 Combo Port, Metal Casing
£102.78 Read moreQuick View -
£30.48Description
Specification
- Rackmountable: No
- Managed: Yes
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000 Mbps RJ45 Ports
Auto-Negotiation/Auto MDI/MDIX - PoE Ports (RJ45): –
- Switching Capacity: 16 Gbps
- Power Supply: DC Power Adapter (Output: 5VDC / 0.6A)
- Dimensions: 158 x 101 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 11.9 Mpps
Packet Buffer Memory: 4 Mbit - Jumbo Frame: 15 KB
- Additional Features: Durable Metal Casing
Desktop/Wall Mount
Physical Security Lock
Surge Protection: 6kV
Supports plug-and-play - Quality of Service: Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control - Layer Features: L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDPL2 Multicast:
IGMP Snooping - VLAN: MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN - Management: “Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software ControllerCloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller” - .:
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration - Environment: Operating Temperature: -5°C ~45°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: ES208G
Power Adapter
Rubber Feet
Installation Guide - Package Type: Retail
- Package Weight: 0.6500 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
Out of stock
TP-LINK (ES208G) Omada 8-Port Gigabit Easy Managed Switch, 8x GB Ports, Metal Casing
£30.48 Read moreQuick View -
£60.97Description
Specification
- Rackmountable: No
- Managed: Yes
- Number of Ports: 6
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 6 x 10/100/1000 Mbps RJ45 Ports
Ports 1-4 Support 802.3af PoE and 802.3at PoE+
Auto-Negotiation/Auto MDI/MDIX - PoE Ports (RJ45): “Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 4 ports
PoE Budget: 65W available for all PoE+ ports, 30W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery
Up to 250m PoE transmission distance” - Switching Capacity: 12 Gbps
- Power Supply: DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
- Dimensions: 158 x 101 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 7.4 Mpps
- Jumbo Frame: 15 KB
- Additional Features: Fanless
Durable metal casing
Desktop/wall mounting design
Physical security lock - Quality of Service: Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control - Layer Features: L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDPL2 Multicast:
IGMP Snooping - VLAN: MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN - Management: “Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software ControllerCloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller” - .:
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration - Environment: Operating Temperature: -5°C ~40°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: ES206GP
Power Adapter
Power Cord
Rubber Feet
Installation Guide - Package Type: Retail
- Package Weight: 0.9500 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
Out of stock
TP-LINK (ES206GP) Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+, 6x GB Ports, Metal Casing
£60.97 Read moreQuick View -
£50.80Description
Specification
- Rackmountable: No
- Managed: Yes
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000 Mbps RJ45 Ports
Ports 1–4 Support 802.3at PoE+ and 802.3af PoE
Auto-Negotiation/Auto MDI/MDIX - PoE Ports (RJ45): “Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 4 ports
PoE Budget: 65 W available for all PoE+ ports, 30W max per port
PoE Auto Recovery
Up to 250m PoE transmission distance” - Switching Capacity: 10 Gbps
- Power Supply: DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
- Dimensions: 100 x 98 x 25 mm
- Transfer Method: Store-And-Forward
- Mac Address Table: 8K
- Packet Forwarding Rate: 7.4 Mpps
- Jumbo Frame: 15 KB
- Additional Features: Fanless
Durable metal casing
Desktop/wall mounting design
Physical security lock - Quality of Service: Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control - Layer Features: L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDPL2 Multicast:
IGMP Snooping - VLAN: MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN - Management: “Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software ControllerCloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller” - .:
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration - Environment: Operating Temperature: 0°C ~40°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: ES205GP
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 0.5900 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
56 in stock
TP-LINK (ES205GP) Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+, 5x GB Ports, Metal Casing
£50.80 Add to basketQuick View -
£25.41Description
Specification
- Rackmountable: No
- Managed: Yes
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): –
- Switching Capacity: 10 Gbps
- Power Supply: External DC Power Adapter (Output: 5 VDC/ 0.6 A)
- Dimensions: 100 x 98 x 25 mm
- Mac Address Table: 8K
- Packet Forwarding Rate: 7.4 Mpps
- Jumbo Frame: 15 KB
- Additional Features: Fanless
Durable metal casing
Desktop/wall mounting design
Physical security lock - Quality of Service: Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control - Layer Features: L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDPL2 Multicast:
IGMP Snooping - VLAN: MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN - Management: “Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software ControllerCloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller” - .:
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration - Environment: Operating Temperature: 0°C ~40°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: ES205G
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 0.3800 kg
- Warranty: Limited Lifetime
- #Hide#POE: No
16 in stock
TP-LINK (ES205G) Omada 5-Port Gigabit Easy Managed Switch, 5x GB Ports, Metal Casing
£25.41 Add to basketQuick View -
£46.45Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af compliant
PoE+ Ports: Port1- Port4
Power Supply: 56W - Bandwidth: 10Gbps
- Power Supply: External Power Adapter (Output: 48VDC / 1.25A)
- Dimensions: 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
- Transfer Method: Store-And-Forward
- Mac Address Table: 2K
- Additional Features: Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping - Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Contents: TL-SG1005P
Power Adapter
Installation Guide - Package Type: Retail
- Package Weight: 0.8000 kg
- Warranty: Limited Lifetime
- #Hide#POE: Yes
315 in stock
TP-LINK (TL-SG1005P) 5-Port Gigabit Unmanaged Desktop Switch, 4 Port PoE+, Steel Case
£46.45 Add to basketQuick View -
£32.20Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 10
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): “10 x 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX”
- PoE Ports (RJ45): Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 W - Standards and Protocols: IEEE 802.3x Flow Control
- Power Supply: External Power Adapter (Output: 53.5V/1.31A)
- Dimensions: 171 x 98 x 27 mm
- Mac Address Table: 2K
- Jumbo Frame: 2 KB
- Additional Features: See Overview
- Security: Isolation Mode
- Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing - Package Contents: 10-Port Desktop Switch (MS110P)
Power Adapter
Quick Installation Guide - Package Type: Retail
- Package Weight: 0.8200 kg
- Warranty: 3 Years
- #Hide#POE: Yes
6 in stock
Mercusys (MS110P) 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+, Metal Case
£32.20 Add to basketQuick View -
Mercusys (MS108GS-M2) 8-Port 2.5G Multi-Gigabit Desktop Switch, 8x 2.5G Ports, Fanless, Metal Casing£68.34Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 2.5 Gbps
- Interface(s): “8 x 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX”
- PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz”
- Switching Capacity: 40 Gbps
- LED: Power
Link/Act Indicators - Power Supply: External Power Adapter (Output: 12 VDC / 1.0 A)
Max Power Consumption: 8.87 W - Dimensions: 158 x 101 x 25.4 mm
- Transfer Method: Store and Forward
- Mac Address Table: 4K
- Packet Forwarding Rate: 29.8 Mpps
- Jumbo Frame: 12KB
- Additional Features: 802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Fanless
Metal Casing - Environment: Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing - Package Contents: 8-Port 2.5G Multi-Gigabit Desktop Switch MS108GS-M2
Power Adapter
Installation Guide
Rubber Feet - Package Type: Retail
- Package Weight: 0.7900 kg
- Warranty: 3 Years
- #Hide#POE: No
4 in stock
Mercusys (MS108GS-M2) 8-Port 2.5G Multi-Gigabit Desktop Switch, 8x 2.5G Ports, Fanless, Metal Casing
£68.34 Add to basketQuick View -
£37.96Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 8 x 10/100/1000Mbps Ports
- PoE Ports (RJ45): Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W - Standards and Protocols: IEEE 802.3x Flow Control
- Power Supply: External Power Adapter (Output: 53.5V/1.31A)
- Dimensions: 171 x 98 x 27 mm
- Mac Address Table: 8K
- Jumbo Frame: 15 KB
- Additional Features: See Overview
- Environment: perating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing - Package Contents: 8-Port Gigabit Desktop Switch (MS108GP)
Power Adapter
Quick Installation Guide - Package Type: Retail
- Package Weight: 0.8400 kg
- Warranty: 3 Years
- #Hide#POE: Yes
9 in stock
Mercusys (MS108GP) 8-Port Gigabit Desktop Switch with 7-Port PoE+, Steel Case
£37.96 Add to basketQuick View -
£14.58Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 8
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): “8 x 10/100/1000Mbps Ports, Auto-Negotiation,
Auto-MDI/MDIX” - PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD”
- LED: “Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power”
- Power Supply: 9V/0.6A
- Dimensions: 127 x 60.3 x 22 mm
- Transfer Method: Store and Forward
- Jumbo Frame: 9KB
- Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.2600 kg
- Warranty: 3 Years
- #Hide#POE: No
56 in stock
Mercusys (MS108G) 8-Port Gigabit Unmanaged Desktop Switch, Plastic Case
£14.58 Add to basketQuick View -
£23.09Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 6
- Max RJ45 Transfer Rate: 10/100 Mbps
- Interface(s): “6 x 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX”
- PoE Ports (RJ45): Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 40 W - Standards and Protocols: IEEE 802.3x Flow Control
- Power Supply: External Power Adapter (Output: 53.5V/0.81A)
- Dimensions: 99.8 x 98 x 25 mm
- Mac Address Table: 2K
- Jumbo Frame: 2 KB
- Additional Features: See Overview
- Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing - Package Contents: 6-Port Desktop Switch with 4-Port PoE+ (MS106LP)
Power Adapter
Quick Installation Guide - Package Type: Retail
- Package Weight: 0.5500 kg
- Warranty: 3 Years
- #Hide#POE: Yes
5 in stock
Mercusys (MS106LP) 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+, Metal Case
£23.09 Add to basketQuick View -
£25.37Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): “5 x 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX”
- PoE Ports (RJ45): Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W - Standards and Protocols: IEEE 802.3x Flow Control
- Power Supply: External Power Adapter (Output: 53.5V/1.31A)
- Dimensions: 99.8 x 98 x 25 mm
- Mac Address Table: 2K
- Jumbo Frame: 9 KB
- Additional Features: See Overview
- Environment: perating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing - Package Contents: 5-Port Gigabit Desktop Switch (MS105GP)
Power Adapter
Quick Installation Guide - Package Type: Retail
- Package Weight: 0.7000 kg
- Warranty: 3 Years
- #Hide#POE: Yes
48 in stock
Mercusys (MS105GP) 5-Port Gigabit Desktop Switch with 4-Port PoE+, Steel Case
£25.37 Add to basketQuick View -
£8.05Description
Specification
- Rackmountable: No
- Managed: No
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): “5 x 10/100/1000Mbps Ports,
Auto-Negotiation, Auto-MDI/MDIX” - PoE Ports (RJ45): –
- Standards and Protocols: “IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD”
- LED: “Ethernet Ports (1, 2, 3, 4, 5), Power”
- Power Supply: 5V/0.6A
- Dimensions: 105 x 70 x 24.9 mm
- Transfer Method: Store and Forward
- Jumbo Frame: 9 KB
- Additional Features: See Overview
- Package Contents: 5-Port Desktop Switch (MS105G)
Power Adapter
Quick Installation Guide - Package Type: Retail
- Package Weight: 0.1980 kg
- Warranty: 3 Years
- #Hide#POE: No
7 in stock
Mercusys (MS105G) 5-Port Gigabit Unmanaged Desktop Switch, Plastic Case
£8.05 Add to basketQuick View -
£72.39Description
Specification
- Rackmountable: No
- Managed: Smart
- Number of Ports: 5
- Max RJ45 Transfer Rate: 10/100/1000 Mbps
- Interface(s): 5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX - PoE Ports (RJ45): Standard: 802.3 af/at compliant
PoE Ports: Port 1 – Port 4
Per Port Max: 30W
PoE Budget: 60W - Standards and Protocols: IEEE 802.1p
IEEE 802.1q
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3i
IEEE 802.3u
IEEE 802.3x
IPv4 - LED: “System power ON/OFF
PoE Alert
Link, Speed, activity, and PoE indicators per port built into each RJ-45 port” - Power Supply: AC input: 100V~240V (50~60 Hz)
DC output: 54V with 1.25A - Dimensions: 121 x 75 x 26 mm
- Mac Address Table: Up to 8K
- Additional Features: ExpertWiFi AiMesh Mode (with ExpertWiFi router only)
IGMP Snooping
VLAN
Loop Detection/Preventio
Port Mirroring
Firmware Update
PoE priority setting
PoE status
Buffer Memory: 4 Mbits - Quality of Service: “Port-based QoS, 802.1p CoS”
- VLAN: VLAN
- Security: SSL/TLS
- Management: Quality of Service
IGMP Snooping
Port Mirroring
Loop Detection/Prevention
Web-based GUI
ExpertWiFi APP (with ExpertWiFi products only) - Environment: Operating Temperature: 0°C ~ 40°C
Storage Temperature: -20°C ~ 70°C
Operating Humidity: 10% ~ 95% RH non-condensing
Storage Humidity: 5% ~ 95% RH non-condensing - Package Contents: ExpertWiFi EBP15
RJ45 Ethernet Cable
Power Adapter
Quick Start Guide
Warranty Card - Package Type: Retail
- Package Weight: 0.2500 kg
- Warranty: 3 Years
- #Hide#POE: Yes
Out of stock
Asus (ExpertWiFi EBP15) 5-Port Gigabit Smart Managed Switch with 4-Port PoE+, 60W, Centralised Management
£72.39 Read moreQuick View
